PLX-1000

PLX-1000

Professional direct drive turntable

$739
$739
Sale

A reborn classic

The PLX-1000 is precision engineered for the booth, drawing on 50 years’ experience of making high-end turntables. The result is a familiar layout with some next generation improvements, including a high-torque direct drive system, multi-pitch control, club-grade build and sound quality, and detachable power and audio cables.

In stock

Find a Store

View full details

KEY FEATURES

Turn the tables

The high-torque direct drive ensures stable rotation and exceptional control – and it reaches 33⅓ rpm in just 0.3 seconds thanks to a starting torque of 4.5kg/cm (or more).

Excellent sound design

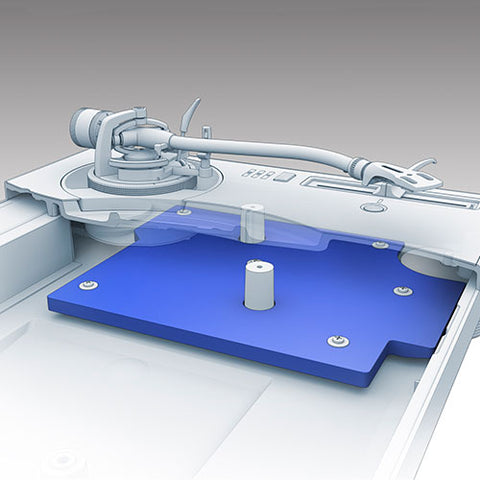

The PLX-1000’s heavy-mass, die-cast zinc chassis prevents resonance and vibrations. The lower part of the unit is reinforced with 8mm-thick resin, plus 9mm-thick, vibration-damping material at the base. Plus the rubber-insulated tone arm reduces howling effects, while rubber and springs on the dampening parts of the insulator absorb external vibrations.

Pick up the pace

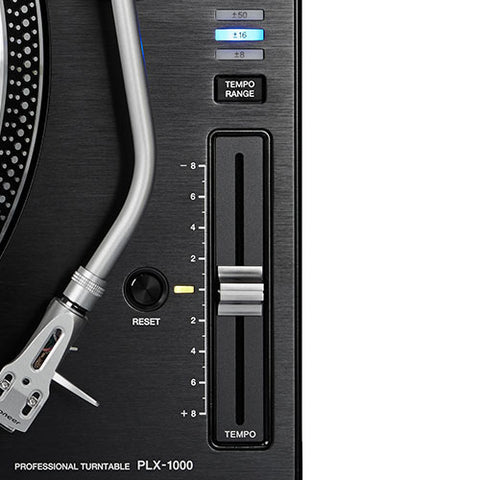

Multi-tempo control lets you instantly pick up or slow down the track to ±8%, ±16% and ±50%, while a simple reset button instantly reverts to ±0%.

Flexible connectivity

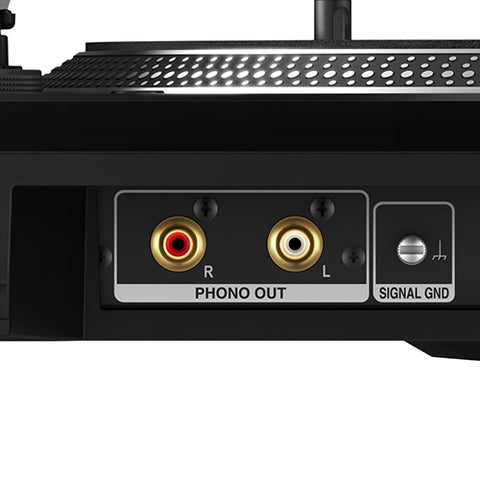

Interchangeable power and audio cables can be easily connected and replaced, and pro-grade gold-plated RCA jacks ensure low impedance and an amazing sound quality.

Specifications

• Accessories:

  • PLX-1000
  • Power cord
  • Audio cable
  • Ground wire
  • Adapter for EP record
  • Turntable sheet
  • Slip mat and sheet
  • Dust cover
  • Head shell
  • Balance, sub and shell weights
  • Operating instructions

• Width:

17.83 in

• Height:

6.26 in

• Depth:

13.9 in

• Weight:

32.19 lb

Turntables

• Drive Method

Quartz lock, servo-type, direct drive

• Platter

Aluminium, die-casting diameter: 332 mm

• Motor

3-phase, brushless DC motor

• Braking System

Electronic brake

• Rotation Speed

33⅓ rpm, 45 rpm

• Rotation Adjustment Range

±8, ±16, ±50 %

• Wow and Flutter

0.1 % or less WRMS (JIS WTD)

• Signal-to-Noise Ratio

70 dB

• Starting Torque

> 4.5 kgf・cm

• Start Time

0.3 sec (at 33⅓ rpm)

Tone Arm

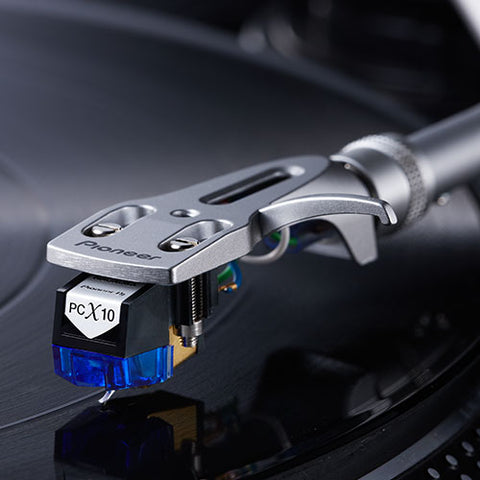

• Arm Type

  • Universal type S-shape tone arm
  • Gimbal-supported type bearing structure
  • Static balance type

• Overhang

0.59 in

• Effective Length

9.06 in

• Tracking Error

Within 3°

• Height Adjustment Range

0.24 in

• Stylus Pressure Variable Range

0-4 g (1 scale 0.1 g)

• Cartridge Weight Single

2.5-12 g (includes mounting materials)

Terminals

• Outputs

1 ANALOGUE (RCA)
