Expression begins with a burst of engery
Unleash your energy and IGNITE the dancefloor
Refined layout and design
Engineered for clarity and precision,
the interface supports your creativity.
Get the crowd moving
Energize your sound with expressive, hands-on control. Maximize every nuance of the music through advanced effects.
Understand your gear at a glance

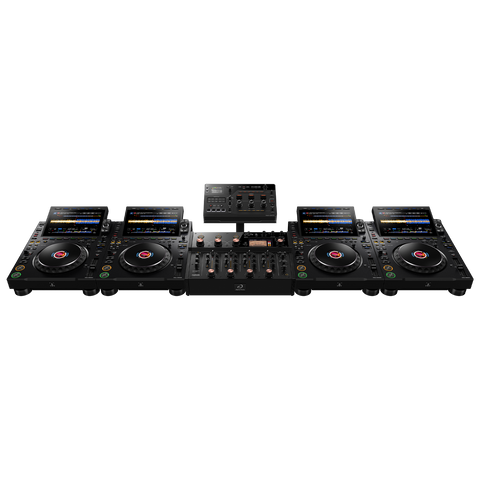

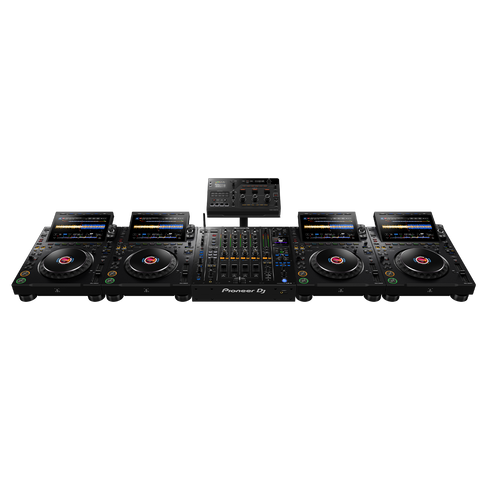

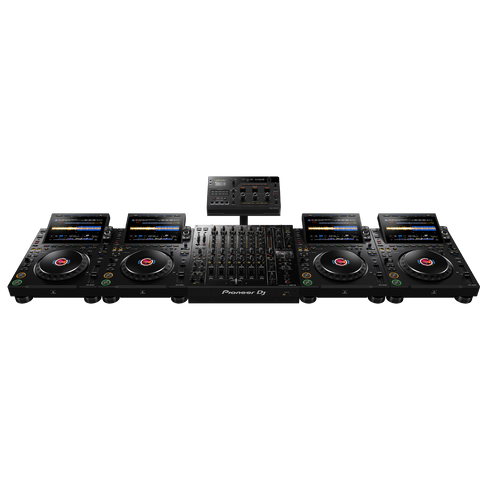

From above, the CDJ, DJM, and RMX-IGNITE form a clear,
aligned layout. All the controls can be read at a glance,
so you know exactly what to adjust –
even before you start playing.

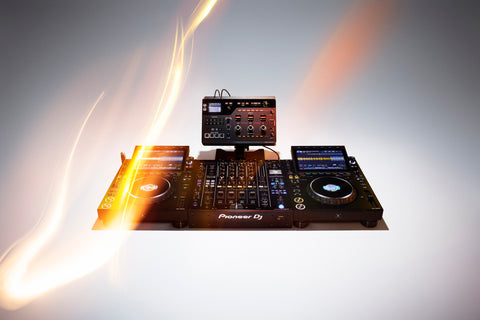

Multiple machines, 1 instrument

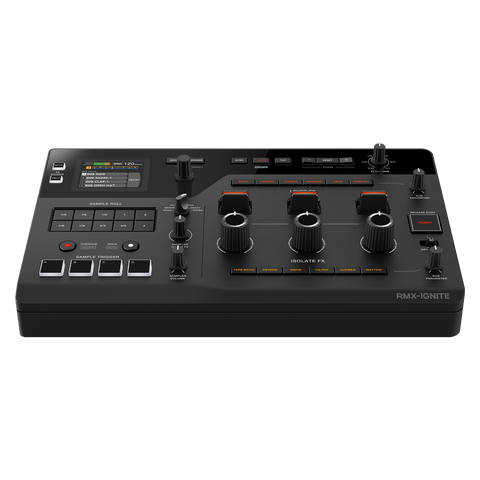

Pads, knobs, and faders blend into 1 layout.
With your CDJs, mixer, and other gear aligned,
your setup becomes a single instrument at your fingertips.
Specifications
Power requirements
Power requirements
AC 100 V – 240 V, 50 Hz / 60 Hz
Power consumption
Power consumption
DC 15 V, 3.0 A
Power consumption (OFF)
Power consumption (OFF)
0.3 W
Max. external dimensions (W × D × H)
Max. external dimensions (W × D × H)
340.0 × 213.3 × 72.8 mm / 13.4″ × 8.4″ × 2.9″
Main unit weight
Main unit weight
2.3 kg / 5.1 lbs.
Operating temperature
Operating temperature
+5 °C – +35 °C
Audio
Sampling rate
Sampling rate
96 kHz
A/D, D/A converter
A/D, D/A converter
A/D, D/A converter
Frequency response
Frequency response
20 Hz – 40 kHz
S/N ratio (rated output, A-weighted)
S/N ratio (rated output, A-weighted)
CONNECTION switch (MST): 115 dB
CONNECTION switch (SEND/RETURN): 114 dB
CONNECTION switch (CDJ): 108 dB
Total harmonic distortion (20 Hz – 20 kHz BW)
Total harmonic distortion (20 Hz – 20 kHz BW)
0.0018 %
Standard input level / Standard output level
Standard input level / Standard output level
CONNECTION switch (MST): +4 dBu / +4 dBu
CONNECTION switch (SEND/RETURN): -7.8 dBu / -7.8 dBu
CONNECTION switch (CDJ): -6 dBu / -12 dBu
Input impedance
Input impedance
47 kΩ
Output impedance
Output impedance
680 Ω or less
Rated output level / Load impedance
Rated output level / Load impedance
CONNECTION switch (MST): 21 dBu / 10 kΩ
CONNECTION switch (SEND/RETURN): 12 dBu / 10 kΩ
CONNECTION switch (CDJ): 3 dBu / 10 kΩ

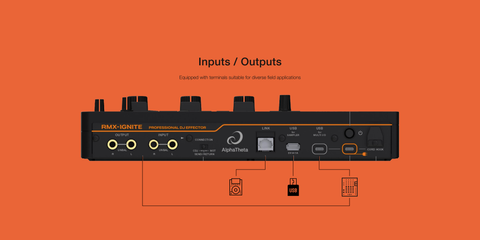

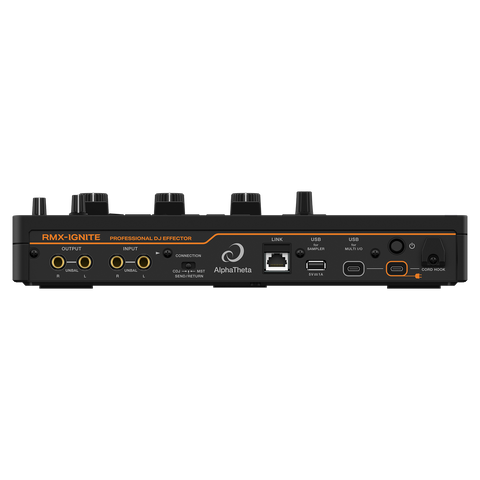

Input / Output terminals
Input
Input
1/4″ TS jack × 1
Output
Output
1/4″ TS jack × 1
USB Type-A (for SAMPLER)
USB Type-A (for SAMPLER)
1 set (Power supply : 5 V/1 A or less)
USB Type-C (for MULTI I/O, AC adapter)
USB Type-C (for MULTI I/O, AC adapter)
2 sets
LINK
LINK
LAN (100BASE-TX) × 1
Supported file formats
WAV
WAV
Bit depth: 16 bit / 24 bit
Sapmling frequency: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz
AIFF
AIFF
Bit depth: 16 bit / 24 bit
Sapmling frequency: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz
