KEY FEATURES

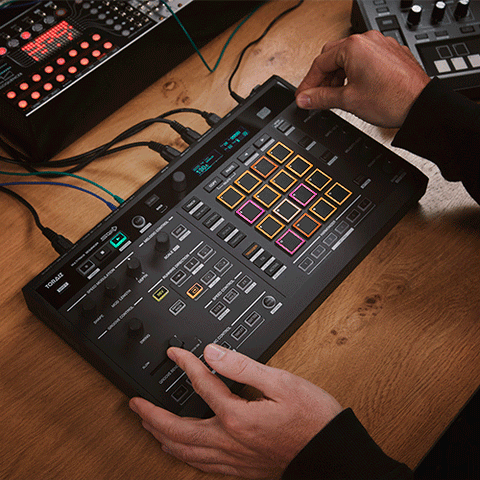

Intuitive Workflow

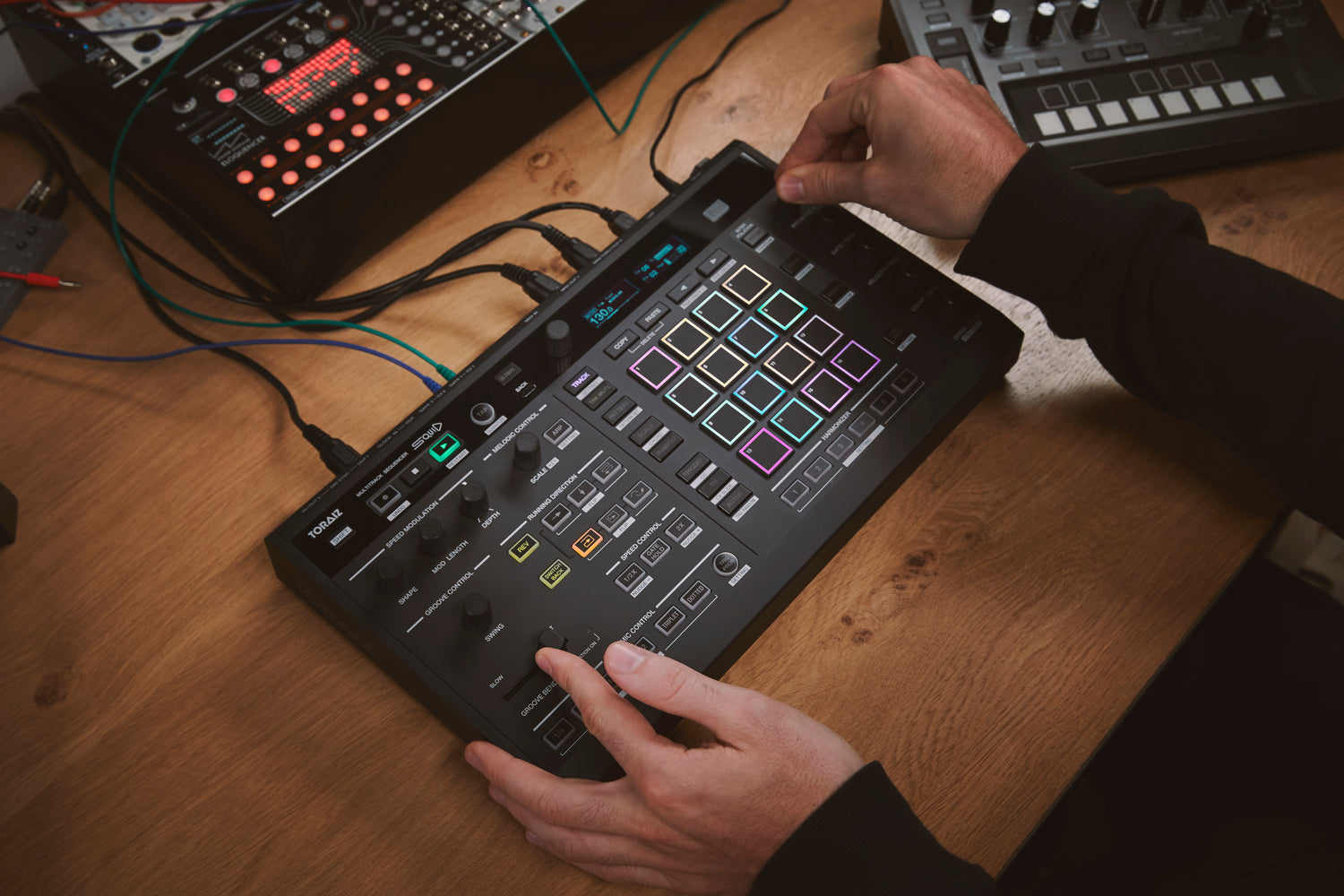

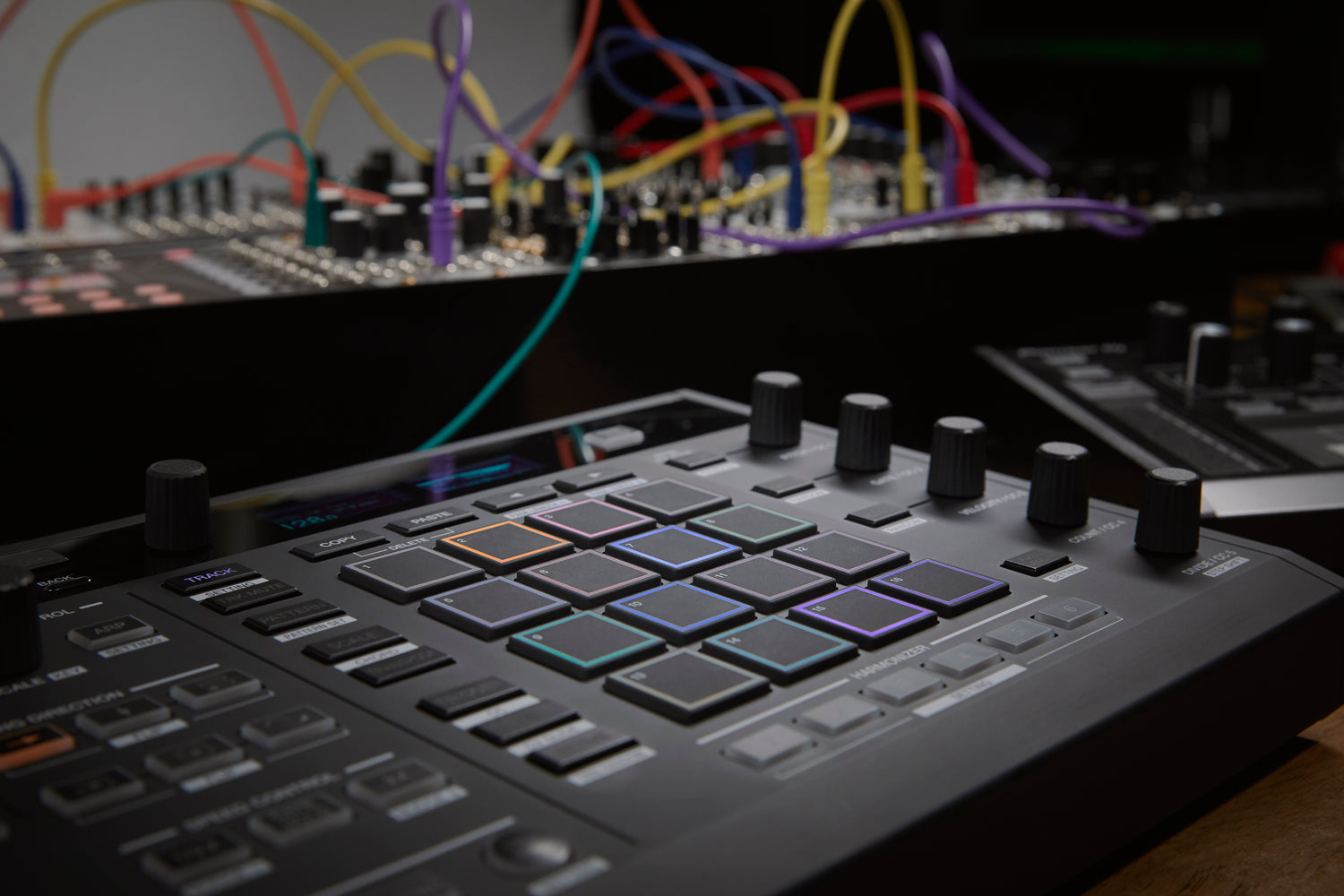

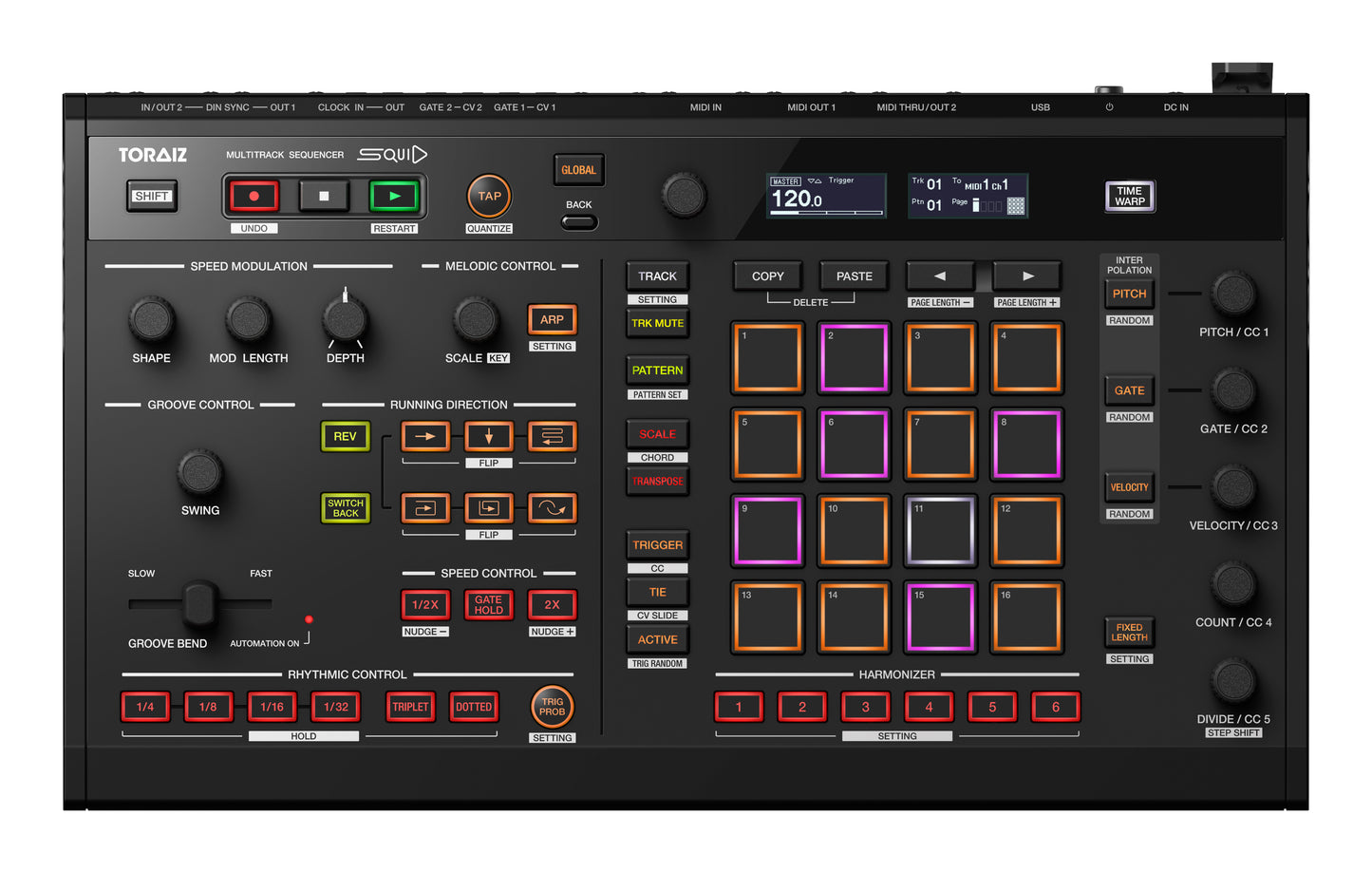

Have fun creating phrases by tapping the 16 multicolored LED rubber pads in the Step Edit section. Set step parameters and play live as if the pads were keys on a keyboard. Combine various sequence functions such as Interpolation and Harmonizer to help build your sounds.
Arrange Phrases in Real Time
Rearrange phrases you’ve created in the Step Edit section to craft your ideas the instant they spring to mind. Enhance your sounds with performance features, such as Running Direction, Speed Modulation, and Groove Bend.
Save your “Happy accidents”

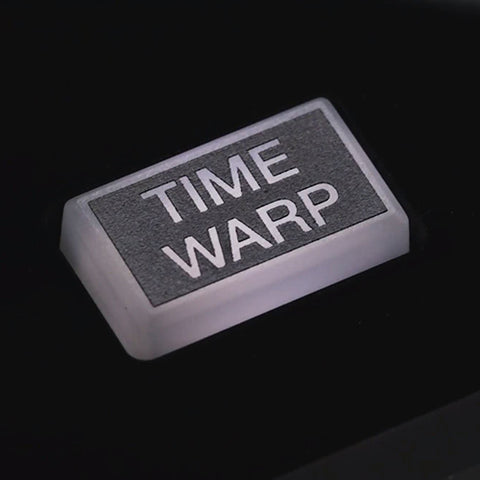

The SQUID records performance information in the background so you’ll never lose phrases you create accidentally. When you’re experimenting and hear something you love, use the Time Warp feature to recall and save it as a sequence pattern for your next track.

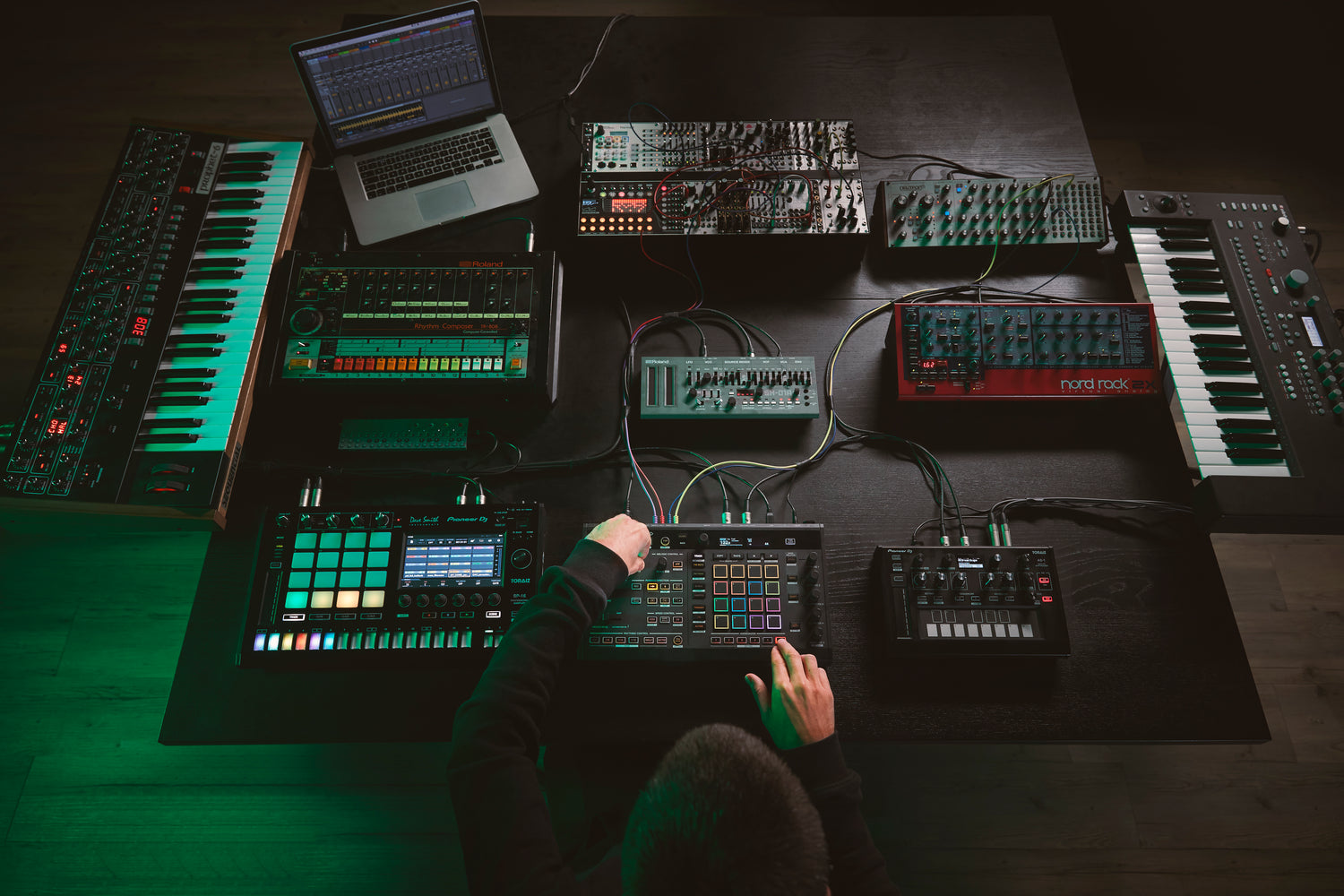

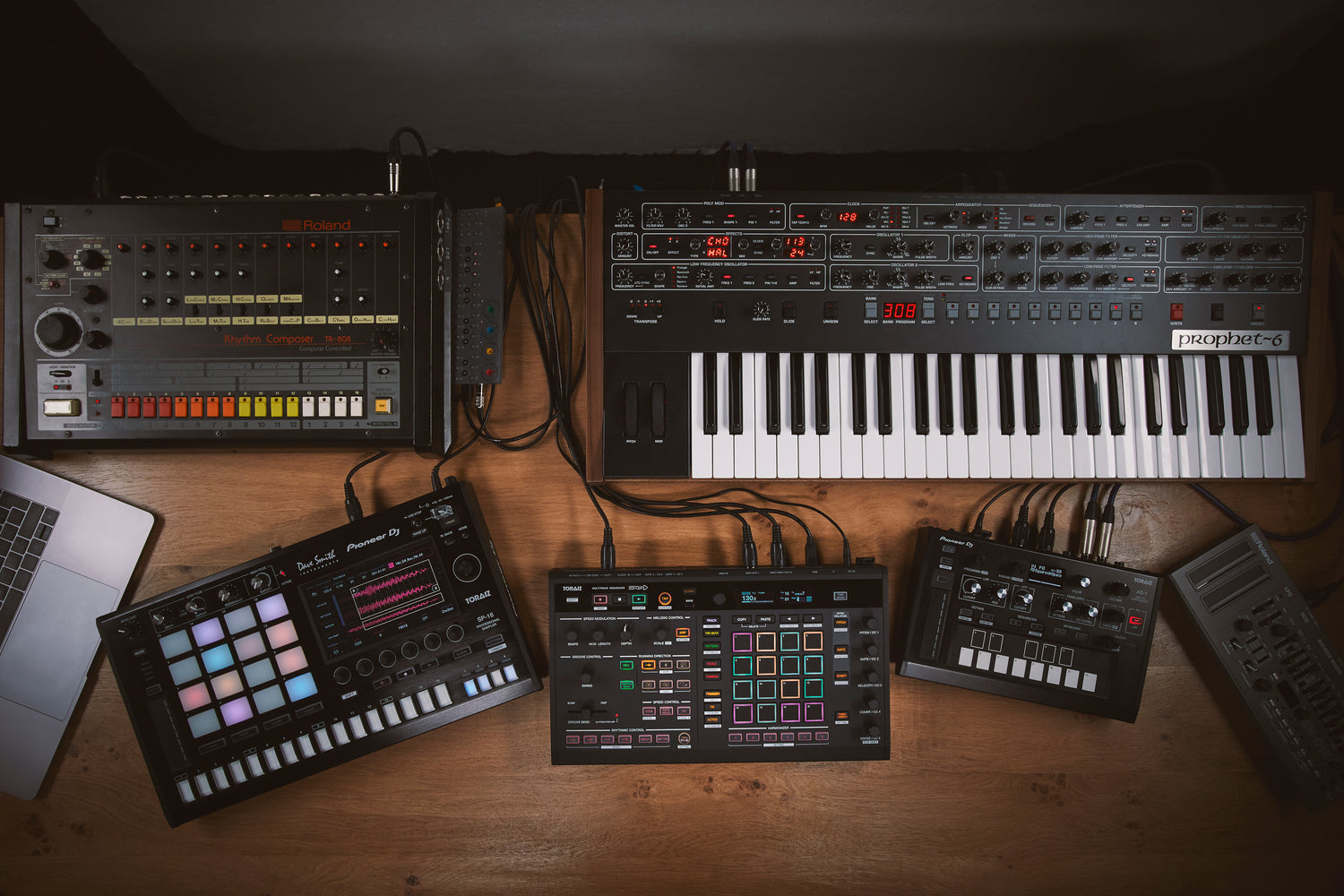

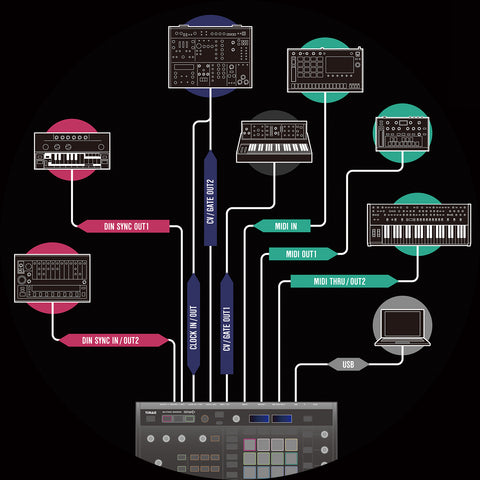

Connect Various Instruments

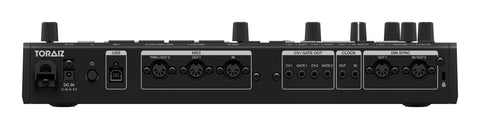

The SQUID has a USB B terminal, MIDI terminals, 2 sets of CV/Gate outputs, and Clock and DIN Sync input/output terminals. This means you can combine the power of your DAW with modern, modular and vintage synths, as well as drum machines. Signals are converted automatically.

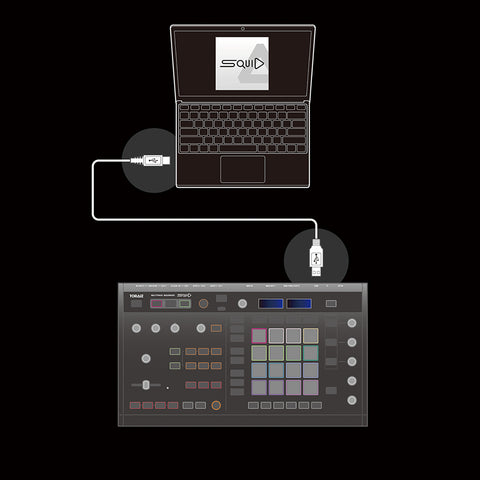

Import and Export Fast
Quickly transfer sequence patterns, projects and Midi clips between the SQUID and your PC or Mac with the SQUID Manager function. Easily import a sequence pattern created on your DAW to the SQUID, instinctively arrange it using the sequencer’s features, and return it to your DAW.
Specifications
Collapsible content
• Specifications
Width
14.76 in
Height
8.81 in
Included Accessories
- AC adaptor
- Power Cord
- Quick Start Guide
Depth
2.84 in
Weight
4.19 lb
• Sequencer
Maximum number of tracks
16 tracks
Maximum number of patterns per track
64 patterns
Maximum number of steps per track
64 steps
Step resolution
- Quarter note
- Eighth note
- Sixteenth note
- Twenty-fourth note
- Thirty-second note
Maximum number of notes per step
8 notes
Maximum number of projects
128 projects

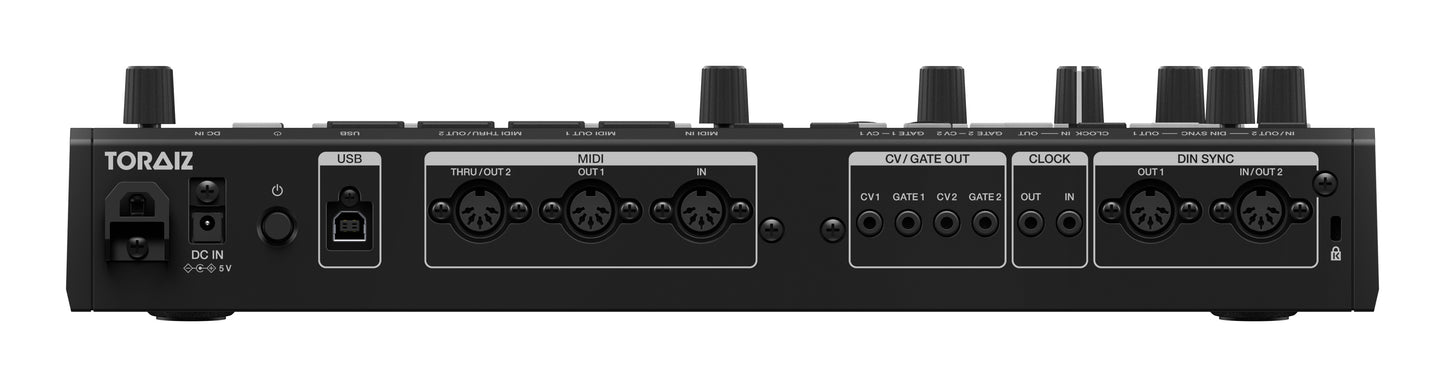

• Terminals
MIDI
- 1 MIDI IN
- 1 MIDI OUT
- 1 MIDI THRU / OUT
USB
1 USB B port
CV GATE
- 2 CV OUT (V/Oct, Hz/V)
CV output range: 1V, 2V, 5V, 10V, ±5V (V/Oct) / 8V (Hz/V) - 2 GATE OUT (V-Trigger, S-Trigger)
GATE output range: 5V, 10V (V-Trigger)
CLOCK
- 1 CLOCK IN (Step, 1, 2, 4, 24, 48ppqn, Gate)
- 1 CLOCK OUT (1, 2, 4, 24, 48ppqn)
DIN SYNC
- 1 DIN OUT (24, 48ppqn)
- 1 DIN SYNC IN / OUT (24, 48ppqn)
