Key Features
Club-Standard DJ Experience with the Feeling of Complete Control

Large Touchscreen for Seamless Control, from Selecting Tracks to Performing
The 10.1-inch capacitive touchscreen on the XDJ-AZ doesn’t just give you more visual information – it makes it easier to control everything too. Up to 13 tracks can be displayed at once – a massive increase from the 8 on the XDJ-XZ – so you can see more of your music and find songs quicker. Other advanced features include Playlist Bank, to which you can register up to 4 playlists for rapid access, Touch Preview, which allows you to preview tracks in playlists without loading them, and Touch Cue, which you can use to preview the upcoming section of tracks currently playing on the deck. All this makes track selection quick and smooth. And, with the option to display the status of the selected Performance Pad and Beat FX settings simultaneously, you can instantly grasp the information you need in order to perform.



Standalone 4-Deck Playback: DJ Your Way
Whether you want to add more sounds to your mix, create live mashups, go back-to-back with another DJ, or get more tracks lined up so you’re ready to drop them at the perfect time, 4-deck playback support on the XDJ-AZ gives you the flexibility to perform however you like. You can seamlessly integrate CDJs into your setup too, so there’s no need to switch decks. With PRO DJ LINK™ compatibility, beat and on-air information are synced across the players, so you’ll feel in full control.
Ultra-Low-Latency Wireless Monitoring with SonicLink-Compatible DJ Headphones
Thanks to the integrated SonicLink transmitter, you can enjoy ultra-low-latency wireless monitoring with the HDJ-F10 professional DJ headphones. Press a single button to pair the XDJ-AZ with the headphones and you can move around the DJ booth or stage freely, knowing you’ll never tangle or pull on a cable. SonicLink is AlphaTheta’s own proprietary ultra-low-latency wireless technology. It transmits audio 20 times faster than the commonly used Bluetooth® SBC codec, so you’ll never notice a delay between pressing a button or scratching with the jog wheels and hearing the sound from the output.
*The XDJ-AZ doesn’t support a wireless connection with the WAVE-EIGHT portable wireless DJ speaker.

Clear and Dynamic Audio
If you’re familiar with the preceding XDJ-XZ, you’ll notice various upgrades have been made in the design of the XDJ-AZ. By incorporating a 32-bit D/A converter from ESS Technology, the sound quality has been significantly enhanced to create clear and dynamic audio that can rock large venues and clubs.

3 Band Master EQ
You can also use the 3-Band Master EQ to tweak the output sound according to the acoustic characteristics of the venue.

Mixer Settings
The XDJ-AZ features a dedicated button for the mixer settings, so you can quickly check and adjust the mixer’s status on-screen.
Other Features

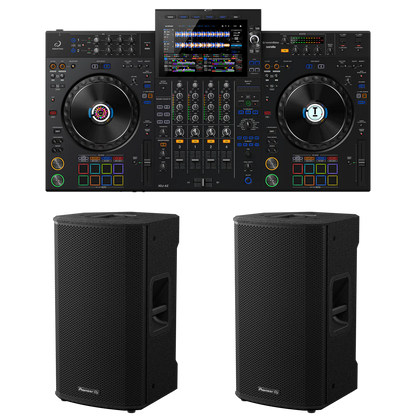

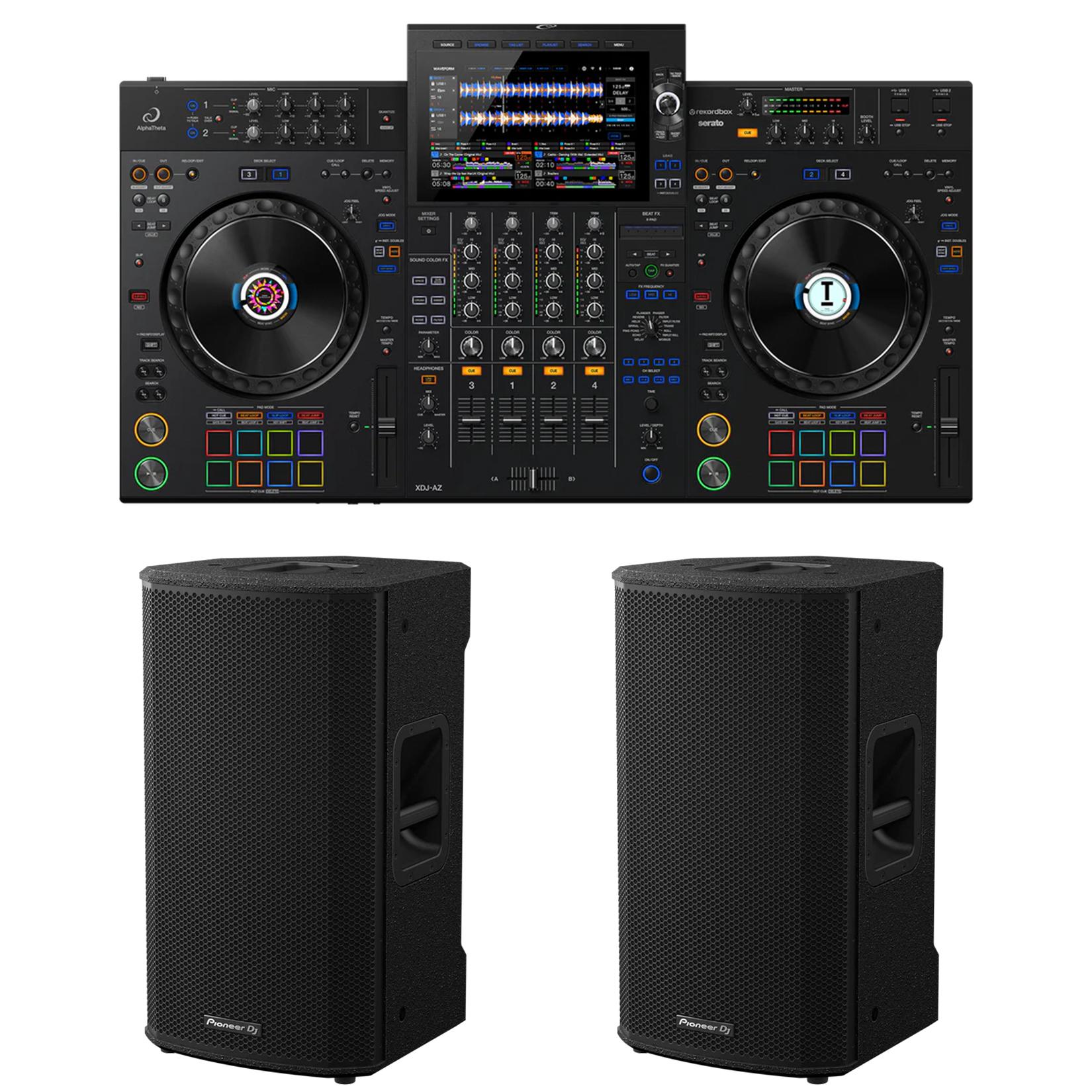

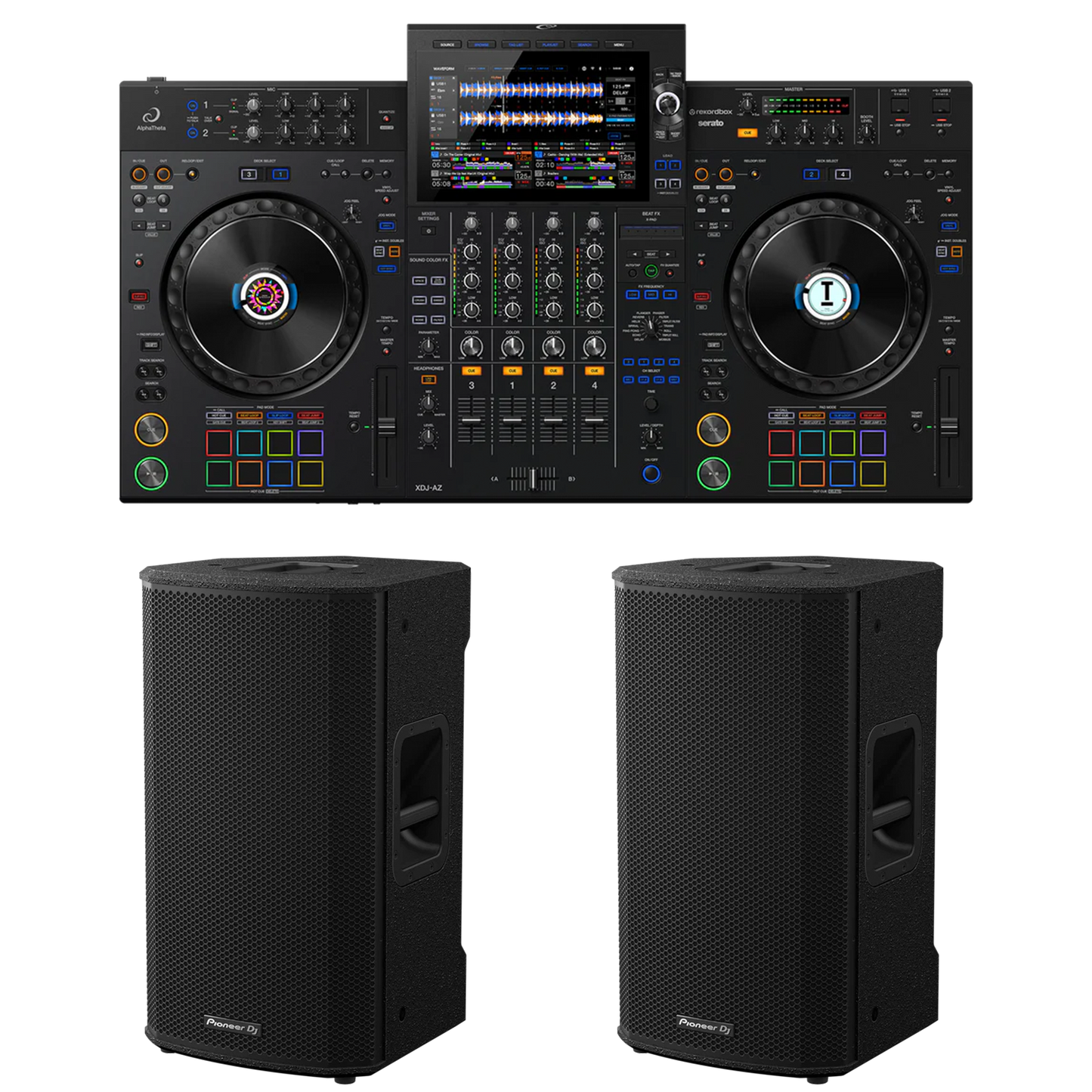

Combine with

XPRS Loudspeakers

Powerful Class D Amplification
The XPRS2 Series employs Class D Amplification with high output wattage for a powerful and premiere audio experience for performers and listeners alike. The XPRS102 and XPRS122 full-range speakers feature Class D 2000 W amplification, while the XPRS1152S and XPRS1182S subwoofers offer Class D 4000 W amplification.

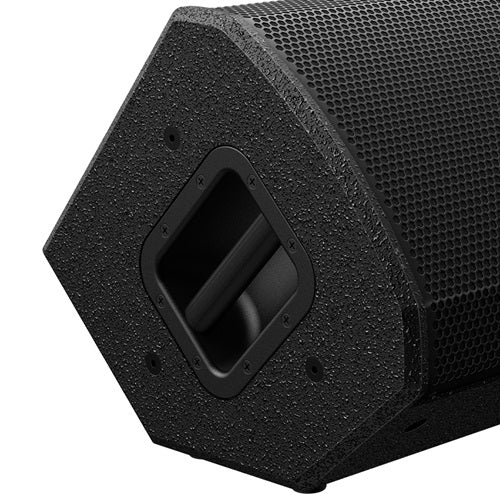

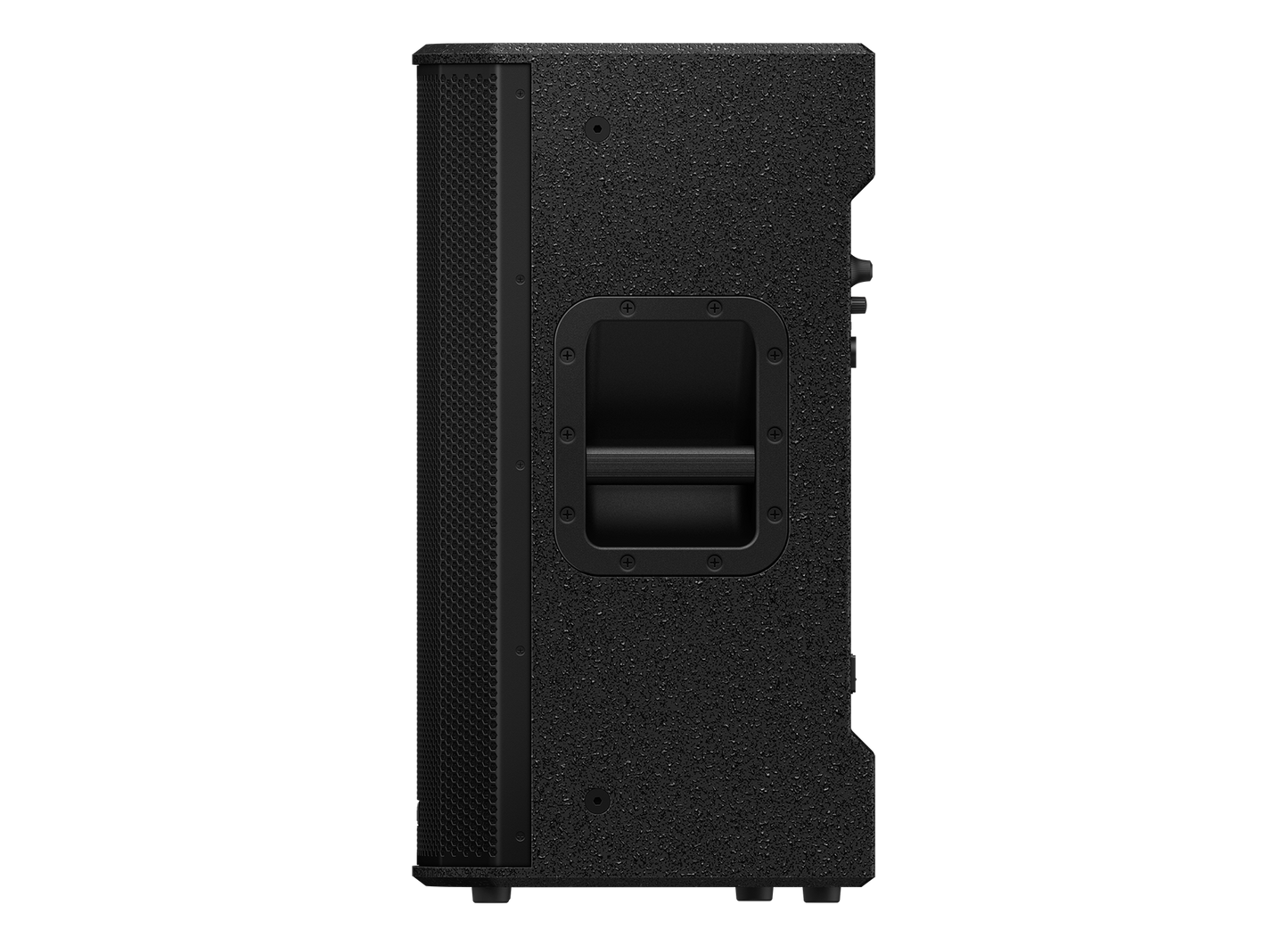

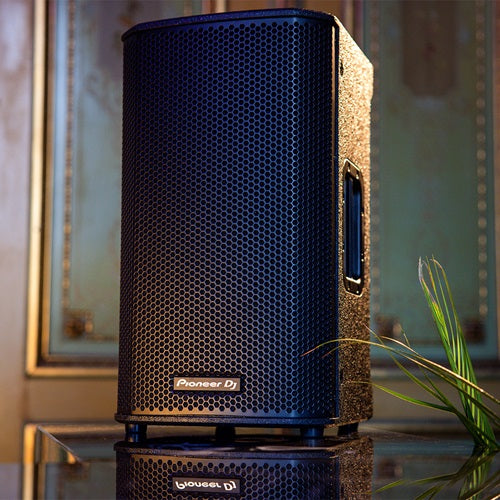

High Quality, Robust Build
Pioneer DJ’s all-new XPRS2 Series features a sleek all-black, protective plywood cabinet for performance in harsh outdoor and indoor environments. The series models all come with a durable handle to support system portability and handling during setup and take down. The XPRS2 Series also features rubber feet to create separation and shock absorption between surfaces.

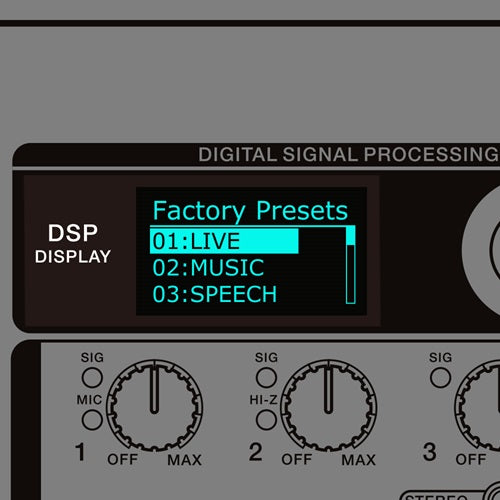

Four DSP Modes
Both of the XPRS2 full-range speakers contain four different DSP preset modes—Live, Music, Speech and Studio Monitoring—to address the needs of different listening environments.

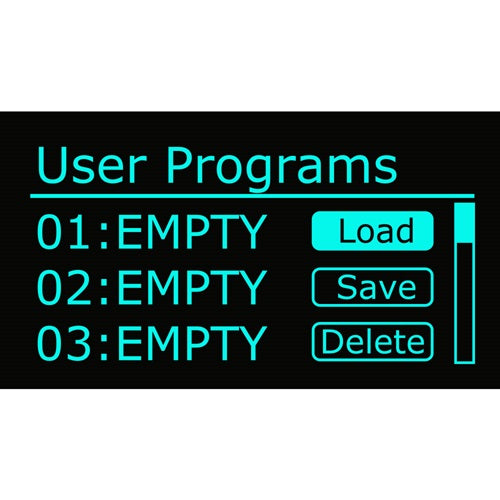

16 Customizable User DSP Modes
In addition to the four presets, each XPRS2 full-range speaker includes 16 custom user DSP modes - which can be saved with different names - to ensure the EQ settings are maximized for every scenario.

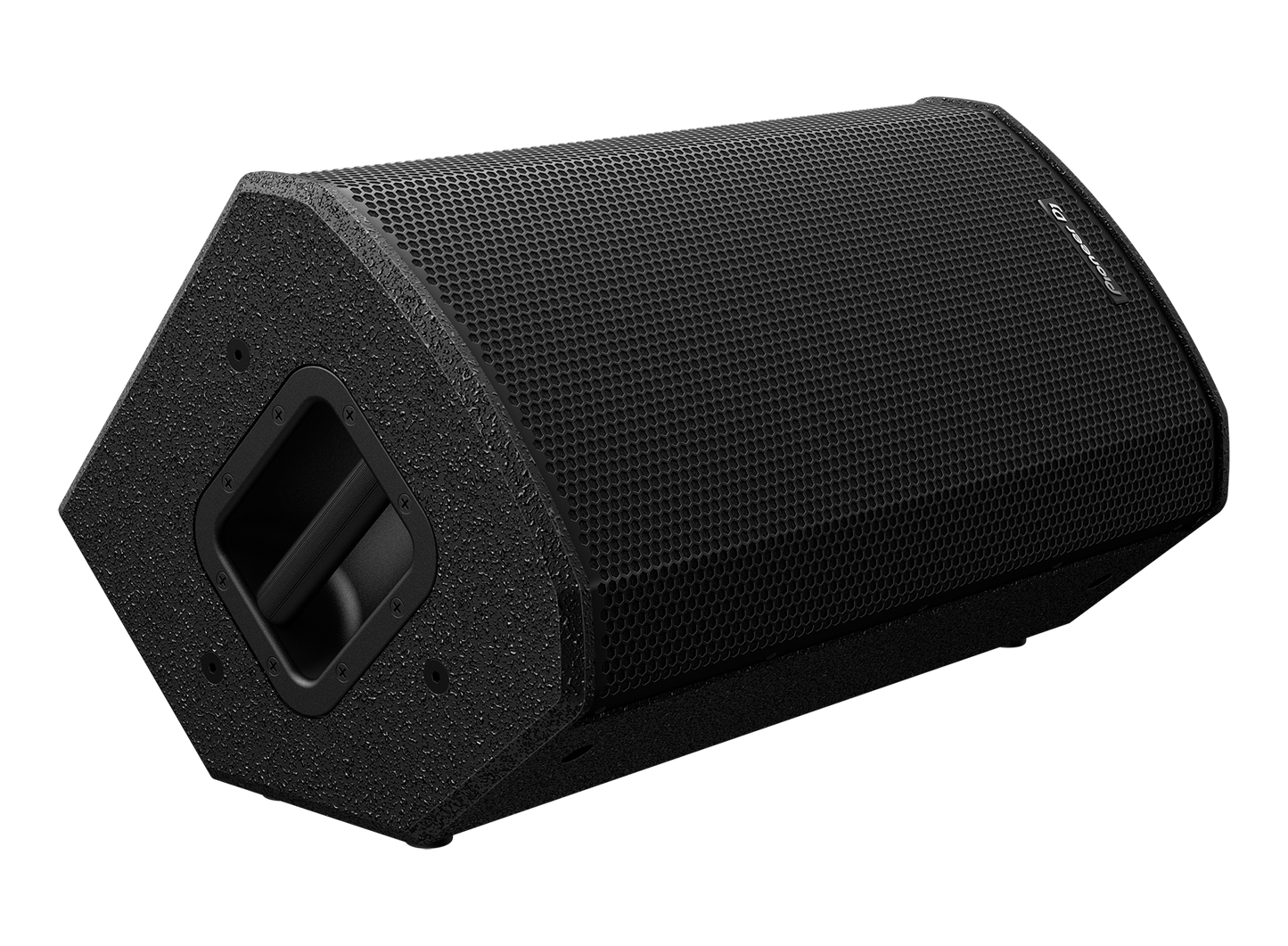

Full-Range Speaker Design
This versatile full range speaker delivers powerful sound built to thrive in even the harshest of sound environments such as a live DJ set!
Specifications
XDJ-AZ
• Specifications
• Maximum Dimensions (W × D × H)
895 × 504.1 × 133.4 mm / 35.24” × 19.85” × 5.25”
• Main Unit Weight
13.5 kg / 29.7 lbs.
• Frequency Response
20 Hz - 20 kHz
• S/N Ratio
115 dB (USB)
• Total Harmonic Distortion
0.0018 % (USB)
• Accessories
Power cord
Quick Start Guide
Precautions for use
Warranty (for some regions)
• Compatible Software
rekordbox for Mac/Windows
rekordbox for iOS/Android
Serato DJ Pro (Coming December 2024)
Terminals
• Inputs
LINE / PHONO × 2 (RCA)
MIC × 2 (XLR & 1/4” TRS jack)
• Outputs
MASTER × 2 (XLR × 1, RCA × 1)
BOOTH × 1 (1/4” TRS jack)
PHONES × 2 (1/4” stereo jack × 1, 3.5 mm stereo mini jack × 1)
• USB
USB Type-A × 2
USB Type-C × 1
• Others
LAN port (100BASE-TX) × 1
Wireless LAN
• Supported Standards
IEEE 802.11 a / b / g / n / ac
• Frequency Band Used
2.4 GHz / 5 GHz
Bluetooth
• Wireless System
Bluetooth ver. 5.3
• Compatible Codecs
SBC, AAC
SonicLink
• Frequency Band Used
2.4 GHz
Performance Control
• Channel
4
• Deck Control
Deck Control4 (USB Storage Device)
4 (DJ Software Control)
• Jog Wheel
206 mm
• Jog Feeling
✓
• Sound Color FX
・DUB ECHO
・NOISE
・SWEEP
・FILTER
・SPACE
・CRUSH
• Beat FX
・DELAY
・ECHO
・PING PONG
・SPIRAL
・REVERB
・TRANS
・FILTER
・TRIPLET FILTER
・FLANGER
・PHASER
・ROLL
・TRIPLET ROLL
・HELIX
・MOBIUS
XPRS Loud Speakers
• XPRS82
• XPRS82
8 inch 2-way active loudspeaker
Amplifier Output
- Class D
- 2000W peak
Accessories
- XPRS82 x 1 (not sold as a pair)
- Powerd cord
- Quick start guide
- Important Safety Precautions
Supported voltages
110 V to 240 V (50 Hz/60 Hz)
Power consumption
800 W
Width
10.74 in
Height
18.11 in
Depth
11.89 in
Weight
29.1 lb
Frequency Range
60 - 20000 Hz
DSP modes
- Factory Presets (4 types)
- Sub Setting (Sub Setting menu is for selecting the high-pass frequency or matching subwoofer)
- EQ (4-band equalizer)
- User Programs (16 presets)
DSP presets modes
Factory presets
LIVE
MUSIC
SPEECH
MONITOR
Maximum Sound Pressure
127 dB
Cross Over Frequency
2 kHz

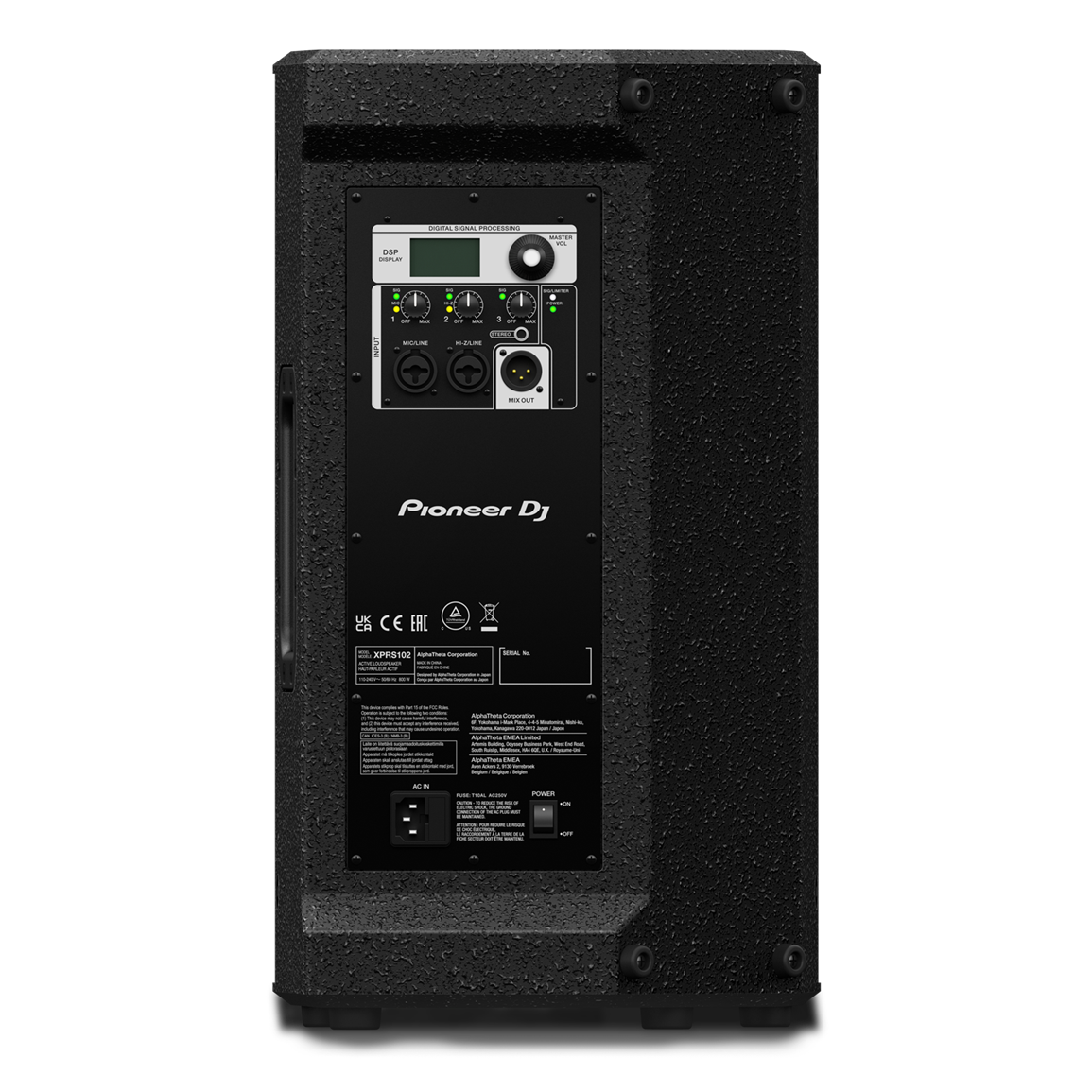

Inputs
- MIC / LINE x 1 (Combo)
- HI-Z / LINE x 1 (Combo)
- 3.5 mm stereo mini jack x 1 (Unbalanced input)
Outputs
MIX (XLR)
Driver
- 8 inch ferrite LF cone driver
- 1.75 inch compression driver
Finish
Black paint, Rubber feet
Handle
1 metal handle (on left side)
Pole socket
35 mm socket
Rigging point
10x M10
Enclosure
Plywood (TSCA)
Amplifier Protection
- Thermal limiting
- Digital Limiter
- Digital compressor
Driver Protection
Short circuit protection
Power unit Protection
- Primary AC mains overcurrent protection
- Primary AC mains overvoltage protection
• XPRS102
XPRS102
10 inch 2-way active loudspeaker
Amplifier Output
- Class D
- 2000W peak
Accessories
- XPRS102 x 1 (not sold as a pair)
- Power cord
- Quick start guide
- Important Safety Precautions
Supported voltages
110 V to 240 V (50 Hz/60 Hz)
Power consumption
800 W
Width
11.77 in
Height
20.47 in
Depth
12.2 in
Weight
34.17 lb
Frequency Range
50 - 20000 Hz
DSP modes
- Factory Presets (4 types)
- Sub Setting (Sub Setting menu is for selecting the high-pass frequency or matching subwoofer)
- EQ (4-band equalizer)
- User Programs (16 presets)
DSP presets modes
Factory presets
LIVE
MUSIC
SPEECH
MONITOR
Maximum Sound Pressure
129 dB
Cross Over Frequency
2 kHz
Inputs
- MIC / LINE x 1 (Combo)
- HI-Z / LINE x 1 (Combo)
- 3.5 mm stereo mini jack x 1 (Unbalanced input)
Outputs
MIX (XLR)
Driver
- 10 inch ferrite LF cone driver
- 1.75 inch compression driver
Finish
Black paint, Rubber feet
Handle
1 metal handle (on left side)
Pole socket
35 mm socket
Rigging point
10x M10
Enclosure
Plywood (TSCA)
Amplifier Protection
- Thermal limiting
- Digital Limiter
- Digital compressor
Driver Protection
Short circuit protection
Power unit Protection
- Primary AC mains overcurrent protection
- Primary AC mains overvoltage protection
• XPRS122
• XPRS122
12 inch 2-way active loudspeaker
Amplifier Output
- Class D
- 2000W peak
Accessories
- XPRS122 x 1 (not sold as a pair)
- Power cord
- Quick start guide
- Important Safety Precautions
Supported voltages
110 V to 240 V (50 Hz/60 Hz)
Power consumption
800 W
Width
14.28 in
Height
25.08 in
Depth
13.78 in
Weight
44.53 lb
Frequency Range
48 - 20000 Hz
DSP modes
- Factory Presets (4 types)
- Sub Setting (Sub Setting menu is for selecting the high-pass frequency or matching subwoofer)
- EQ (4-band equalizer)
- User Programs (16 presets)
DSP presets modes
Factory presets
LIVE
MUSIC
SPEECH
MONITOR
Maximum Sound Pressure
131 dB
Cross Over Frequency
2 kHz
Inputs
- MIC / LINE x 1 (Combo)
- HI-Z / LINE x 1 (Combo)
- 3.5 mm stereo mini jack x 1 (Unbalanced input)
Outputs
MIX (XLR)
Driver
- 12 inch ferrite LF cone driver
- 1.75 inch compression driver
Finish
Black paint, Rubber feet
Handle
2 metal handle (on left side and top)
Pole socket
35 mm socket
Rigging point
10x M10
Enclosure
Plywood (TSCA)
Amplifier Protection
- Thermal limiting
- Digital Limiter
- Digital compressor
Driver Protection
Short circuit protection
Power unit Protection
- Primary AC mains overcurrent protection
- Primary AC mains overvoltage protection
• XPRS152
• XPRS152
15 inch 2-way active loudspeaker
Amplifier Output
- Class D
- 2000W peak
Accessories
- XPRS152 x 1 (not sold as a pair)
- Power cord
- Quick start guide
- Important Safety Precautions
Supported voltages
110 V to 240 V (50 Hz/60 Hz)
Power consumption
800 W
Width
16.57 in
Height
28.58 in
Depth
16.14 in
Weight
55.56 lb
Frequency Range
45 - 20000 Hz
DSP modes
- Factory Presets (4 types)
- Sub Setting (Sub Setting menu is for selecting the high-pass frequency or matching subwoofer)
- EQ (4-band equalizer)
- User Programs (16 presets)
DSP presets modes
Factory presets
LIVE
MUSIC
SPEECH
MONITOR
Maximum Sound Pressure
133 dB
Cross Over Frequency
2 kHz
Inputs
- MIC / LINE x 1 (Combo)
- HI-Z / LINE x 1 (Combo)
- 3.5 mm stereo mini jack x 1 (Unbalanced input)
Outputs
MIX (XLR)
Driver
- 15 inch ferrite LF cone driver
- 1.75 inch compression driver
Finish
Black paint, Rubber feet
Handle
2 metal handle (on left side and top)
Pole socket
35 mm socket
Rigging point
10x M10
Enclosure
Plywood (TSCA)
Amplifier Protection
- Thermal limiting
- Digital Limiter
- Digital compressor
Driver Protection
Short circuit protection
Power unit Protection
- Primary AC mains overcurrent protection
- Primary AC mains overvoltage protection
