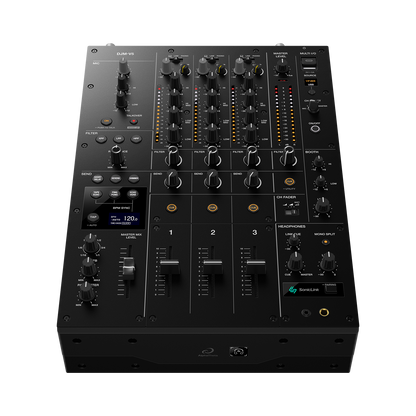

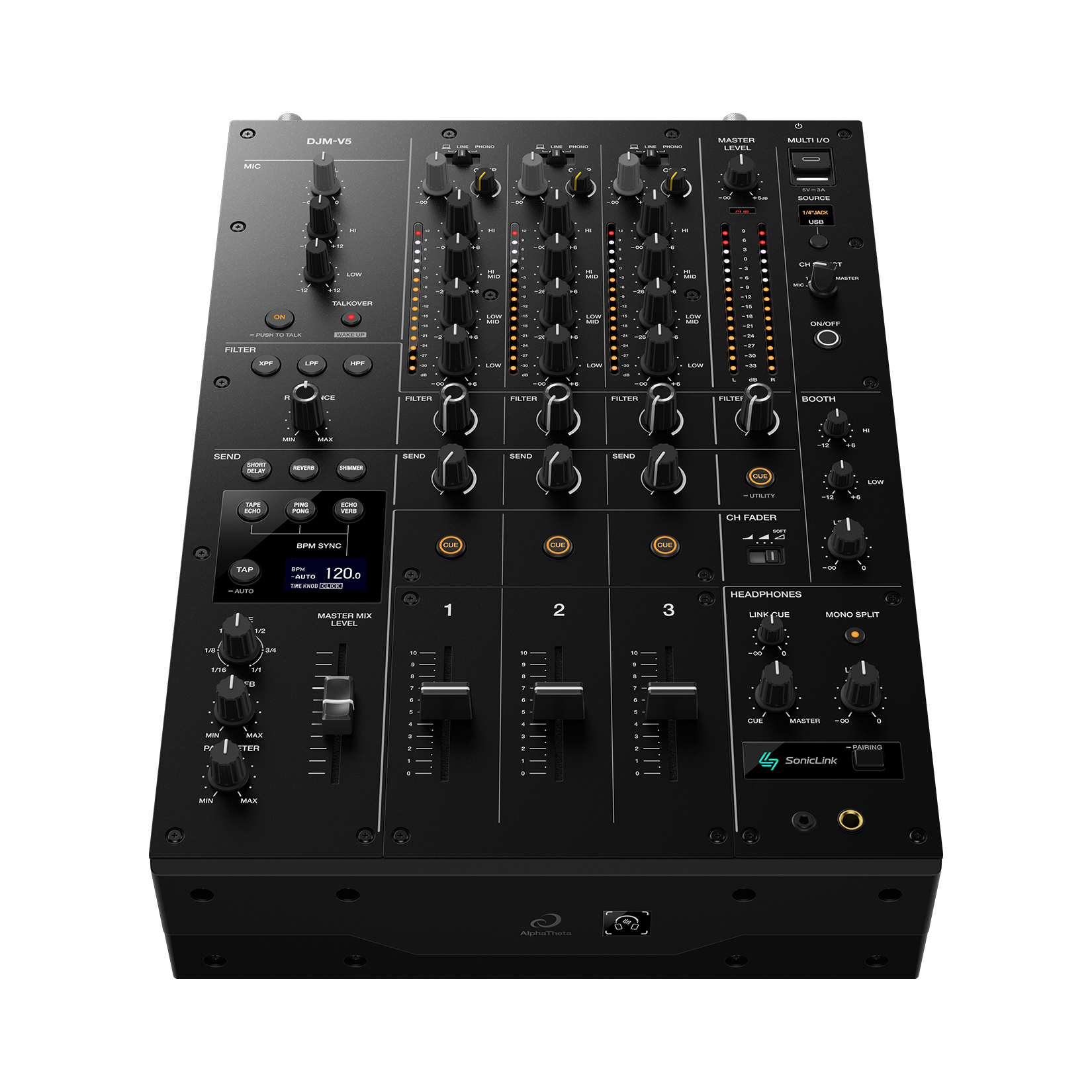

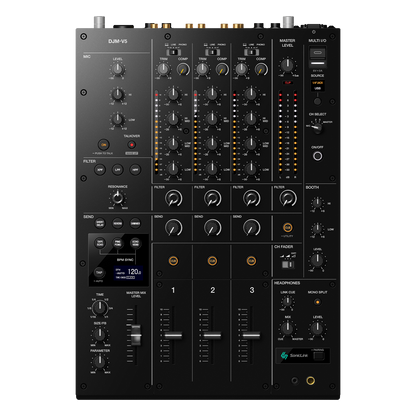

Features

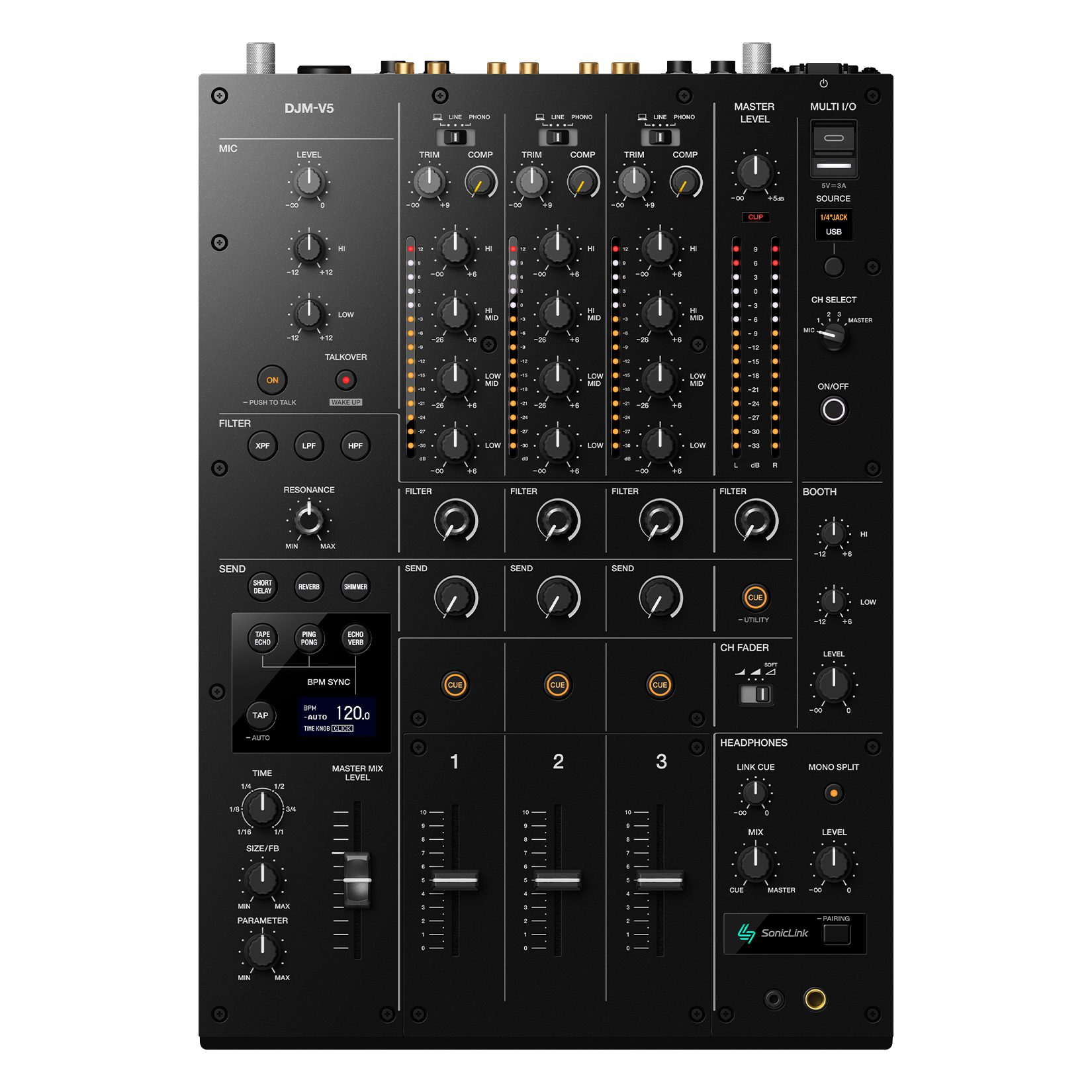

4-Band EQ for Precise Control
The 4-Band EQ on each channel ā inherited from the DJM-V10 ā enables detailed control over the frequencies so you can sculpt the sound you want.
60-mm Long-Throw Faders for Smooth, Natural Mixing
With a 60-mm long-throw fader on each channel, which comes from the DJM-V10-LF, you can precisely control the blend when layering multiple sounds. The newly developed Soft Mix Curve gently reduces high frequencies as you start raising the fader when mixing in the next track, delivering smoother and more natural transitions.
6 Send FX Types for Expanded Expression
Choose from 6 Send FX ā Short Delay, Reverb, Shimmer, Tape Echo, PingPong, and Echo-Verb ā to apply intuitively from the dedicated send knob on each channel. The time knob adapts to each effect, combining BPM-synced operation with smooth time adjustment for precise effect control.
3 Filter Types
As well as low and high-pass filters, the DJM-V5 features a new cross-pass filter. By preserving low-end energy while shaping the mid and high frequencies, it makes musical phrases stand out without disrupting the groove.
SonicLink Support
With a built-in SonicLink transmitter, the DJM-V5 supports ultra-low-latency wireless monitoring. Simple pairing options ā via a button press or NFC touch-based pairing with compatible equipment ā allow for a clean, cable-free monitoring environment where sound and control stay seamlessly connected.
Specifications
Main Features
⢠MIDI Control
Full assignable MIDI controls
⢠DVS Control
rekordboxćSerato DJ Pro
⢠Accessories
Power Cord
Quick Start Guide
Precautions for Use
Warranty (for some regions)
Specifications

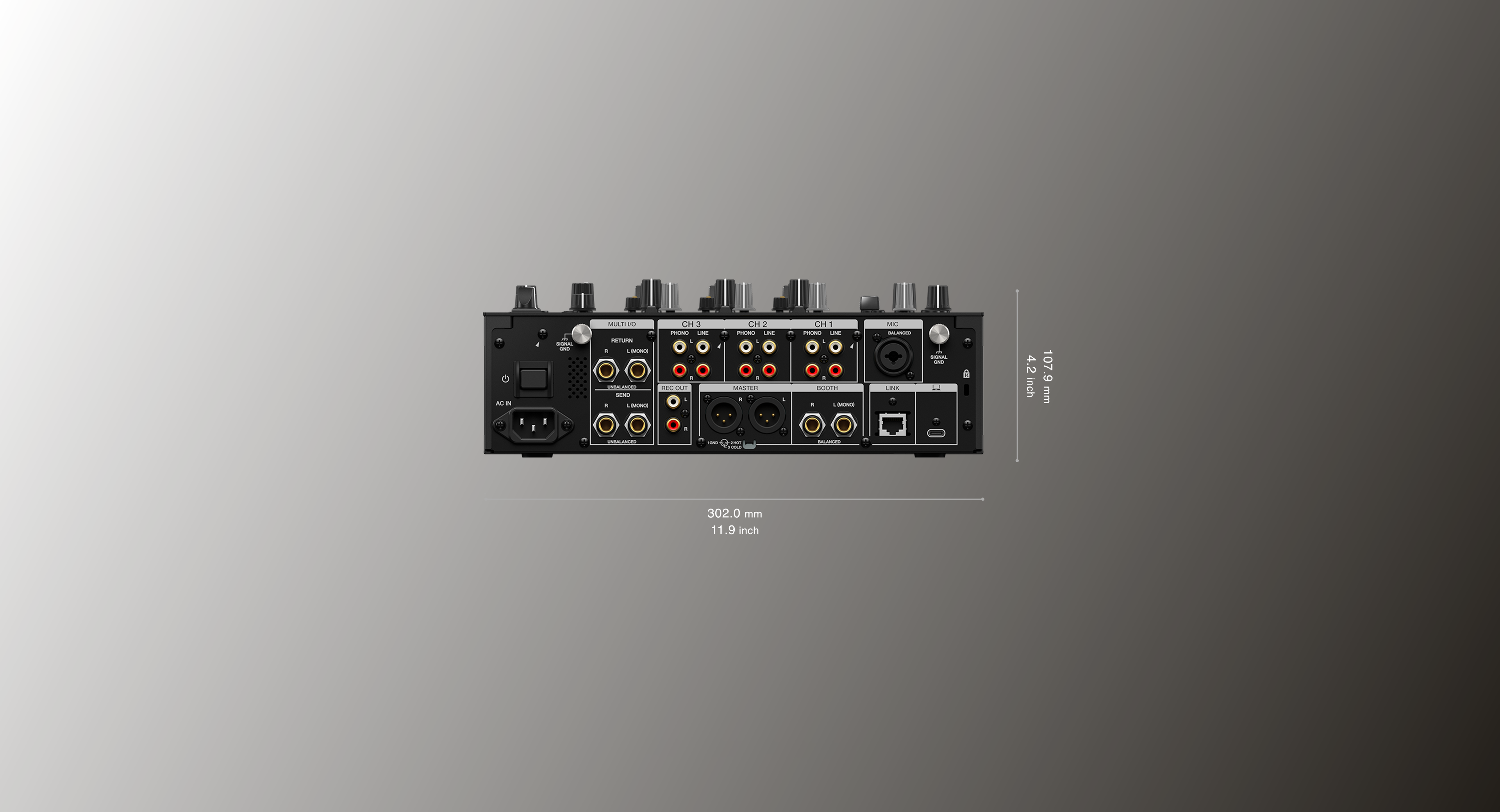

⢠Max. External Dimensions (W à D à H)
302.0 Ć 437.5 Ć 107.9 mm / 11.89ā³ Ć 17.22ā³ Ć 4.25ā³
⢠Main Unit Weight
8.0 kg / 17.6 lbs.

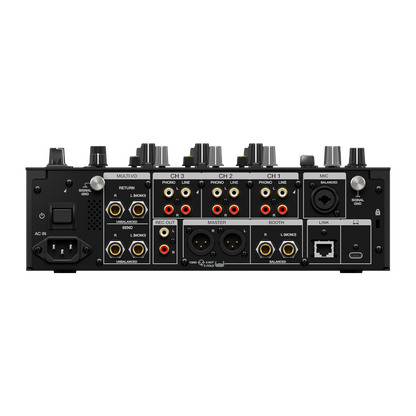

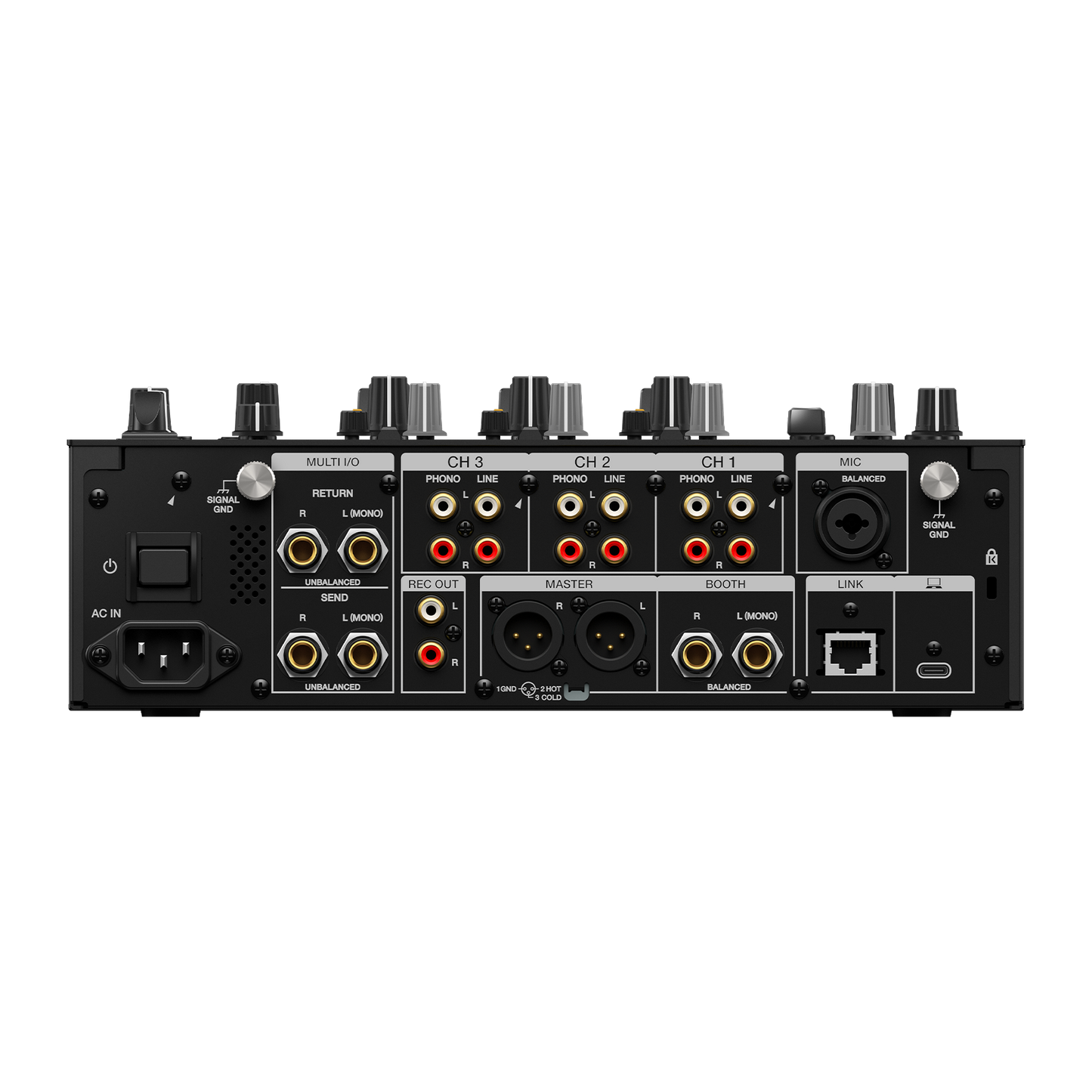

Input / Output Terminal
⢠Input
PHONO Ć 3 (RCA)
LINE Ć 3 (RCA)
MIC Ć 1 (XLR / 1/4-inch TRS jack)
RETURN Ć 1 (1/4-inch TS jack)
⢠Output
MASTER Ć 1 (XLR)
BOOTH Ć 1 (1/4-inch TRS jack)
REC OUT Ć 1 (RCA)
PHONES Ć 2 (1/4-inch / 3.5 mm)
⢠SEND/RETURN
SEND Ć 1 (1/4-inch TS jack)
RETURN Ć 1 (1/4-inch TS jack)
⢠LAN
LAN Ć 1

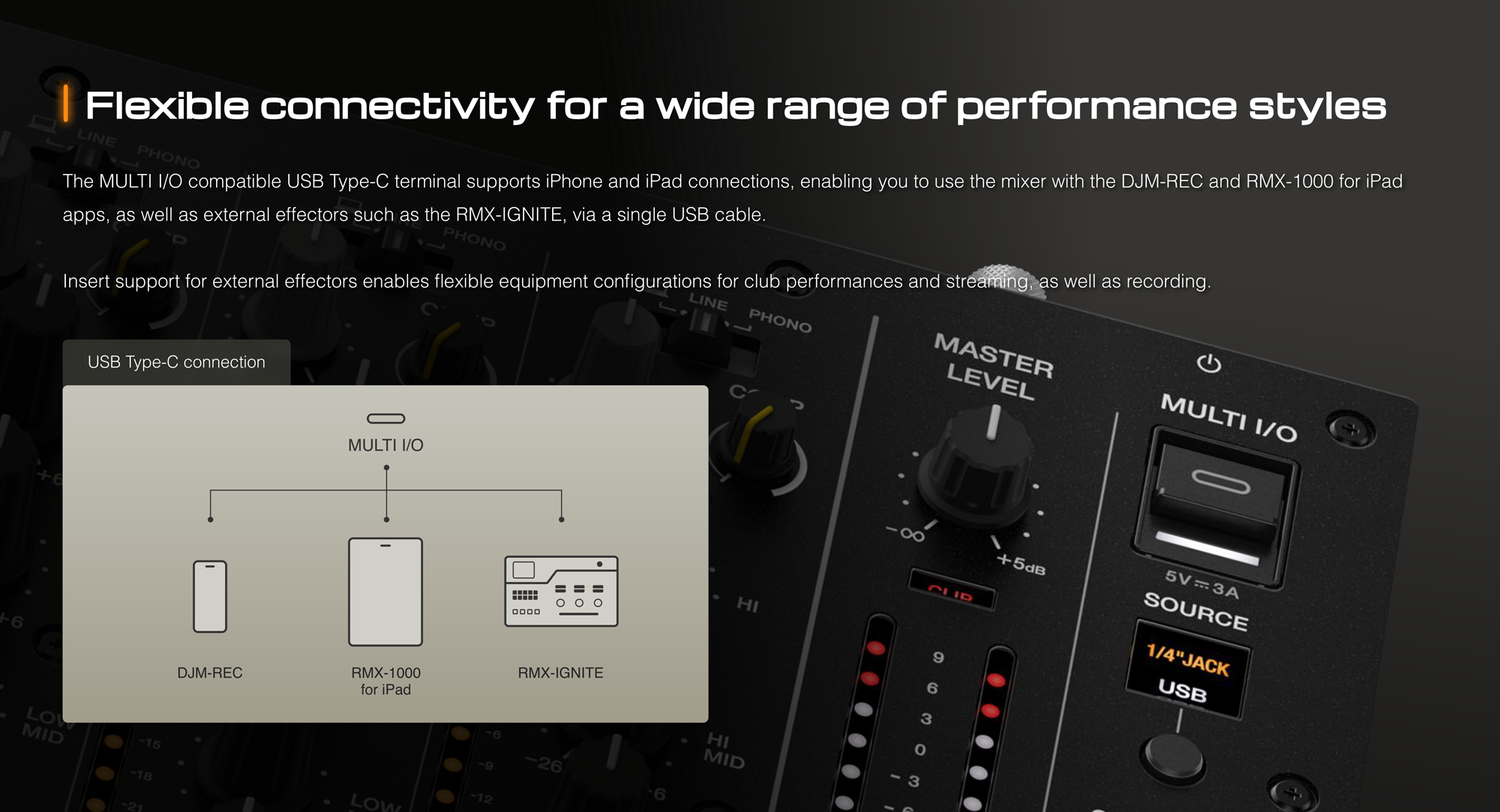

⢠USB
USB Type-C Ć 2
(MULTI I/O Ć 1, PC/Mac Ć 1)
Audio
⢠Sampling Rate
96 kHz
⢠A/D Converter
32 bit
⢠D/A Converter
32 bit
⢠S/N Ratio
LINE 105 dB / PHONO 88 dB / MIC 79 dB
⢠EQ
4 Band
