Refined sound design
The mixer’s entire signal path, including the analog circuitry, has been fine tuned to deliver a high-resolution warm sound.
High-quality converters are used from analog-to-digital through digital-to-analog, ensuring consistent sound across the master, booth, send, and REC outputs.
The return input also features high-grade conversion to minimize sound degradation when using external effects, with tuning refined through extensive testing to align with the sound character of the DJM-V10.

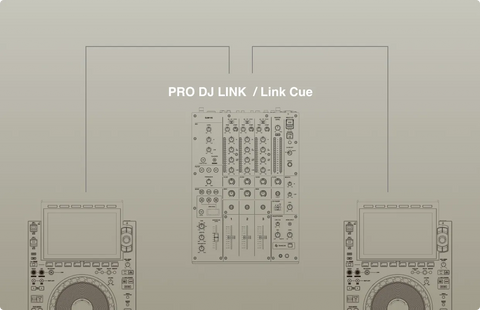

PRO DJ LINK / Link Cue – a seamless flow from preparation to play

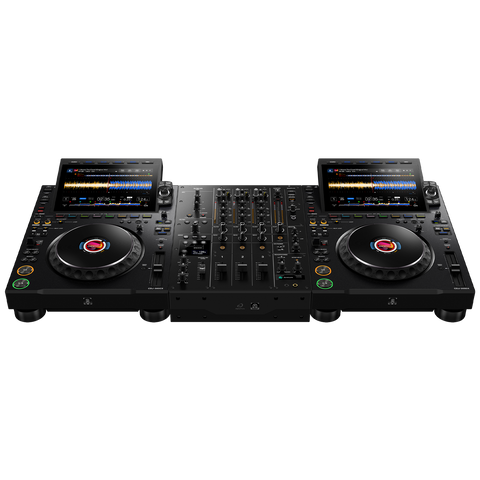

Thanks to PRO DJ LINK support, the DJM-V5 seamlessly connects to the CDJ-3000X, CDJ-3000, and rekordbox, enabling precise, BPM-synced effects control.
This means you can add texture to the music at exactly the right moment and refine your mix.
With Link Cue, you can preview tracks without loading them, and touch the full waveform of the currently playing track to listen to upcoming sections.
A dedicated volume knob for cueing ensures a smooth process from track preparation to playback.
Seamless integration with rekordbox and Serato

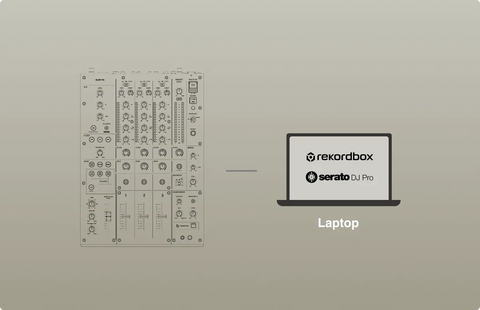

Using a USB Type-C connection to a PC or Mac, the DJM-V5 integrates seamlessly with rekordbox for Mac/Windows and Serato DJ Pro.
With support for a wide range of DJ styles, including DVS, it’s easy to create a smooth and flexible workflow.
*Serato DJ Pro license not included. To use DVS mode in Serato, a Serato DJ Suite license is required.
Flexible connectivity for a wide range of performance styles

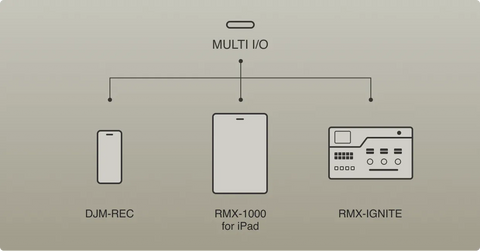

The MULTI I/O compatible USB Type-C terminal supports iPhone and iPad connections, enabling you to use the mixer with the DJM-REC and RMX-1000 for iPad apps, as well as external effectors such as the RMX-IGNITE, via a single USB cable.
Insert support for external effectors enables flexible equipment configurations for club performances and streaming, as well as recording.

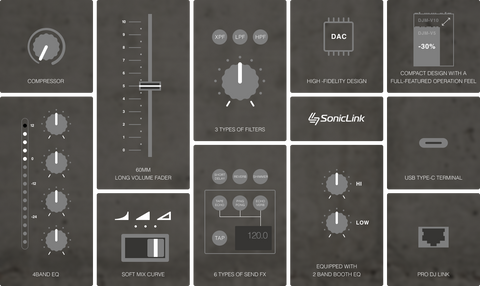

Main Features
MIDI Control
MIDI Control
Full assignable MIDI controls
DVS Control
DVS Control
rekordbox、Serato DJ Pro
Accessories
Accessories
Power Cord
Quick Start Guide
Precautions for Use
Warranty (for some regions)
Specifications
Max. external dimensions (W × D × H)
Max. external dimensions (W × D × H)
302.0 × 437.5 × 107.9 mm / 11.89″ × 17.22″ × 4.25″
Main unit weight
Main unit weight
8.0 kg / 17.6 lbs.

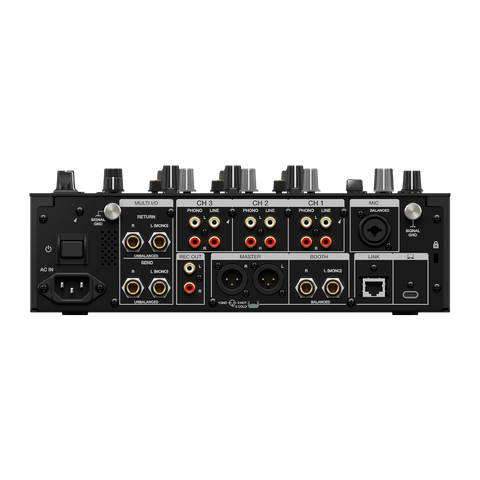

Input / Output terminals
Input
Input
PHONO × 3 (RCA)
LINE × 3 (RCA)
MIC × 1 (XLR / 1/4-inch TRS jack)
Output
Output
MASTER × 1 (XLR)
BOOTH × 1 (1/4-inch TRS jack)
REC OUT × 1 (RCA)
PHONES × 2 (1/4-inch / 3.5 mm)
SEND/RETURN
SEND/RETURN
SEND × 1 (1/4-inch TS jack)RETURN × 1 (1/4-inch TS jack)
LAN
LAN
LAN × 1
USB
USB
USB Type-C × 2(MULTI I/O × 1, PC/Mac × 1)
Audio
Sampling Rate
Sampling Rate
96 kHz
A/D Converter
A/D Converter
32 bit
D/A Converter
D/A Converter
32 bit
S/N Ratio
S/N Ratio
LINE 105 dB / PHONO 88 dB / MIC 79 dB
EQ
EQ
4 Band
