Specifications
Main Specifications

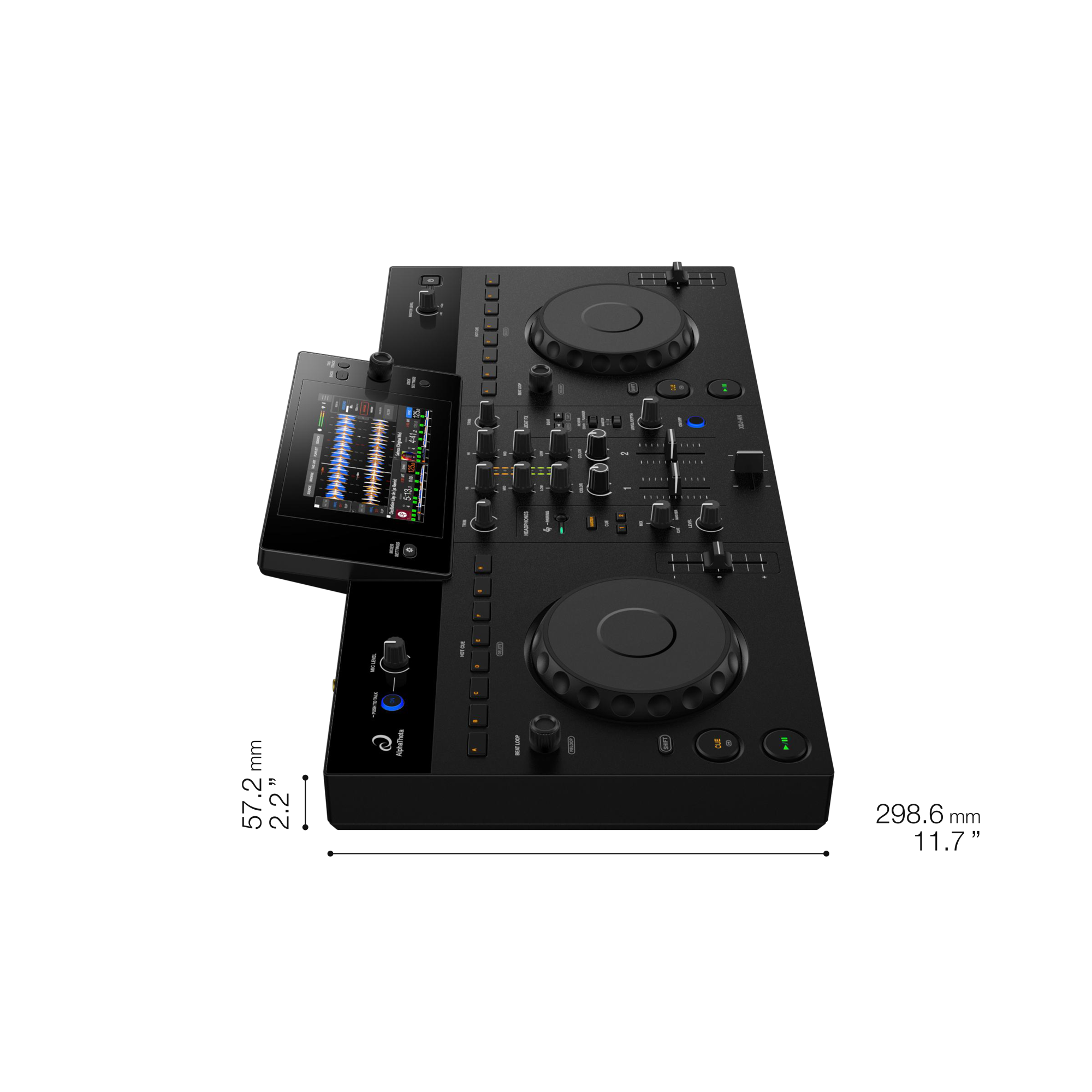

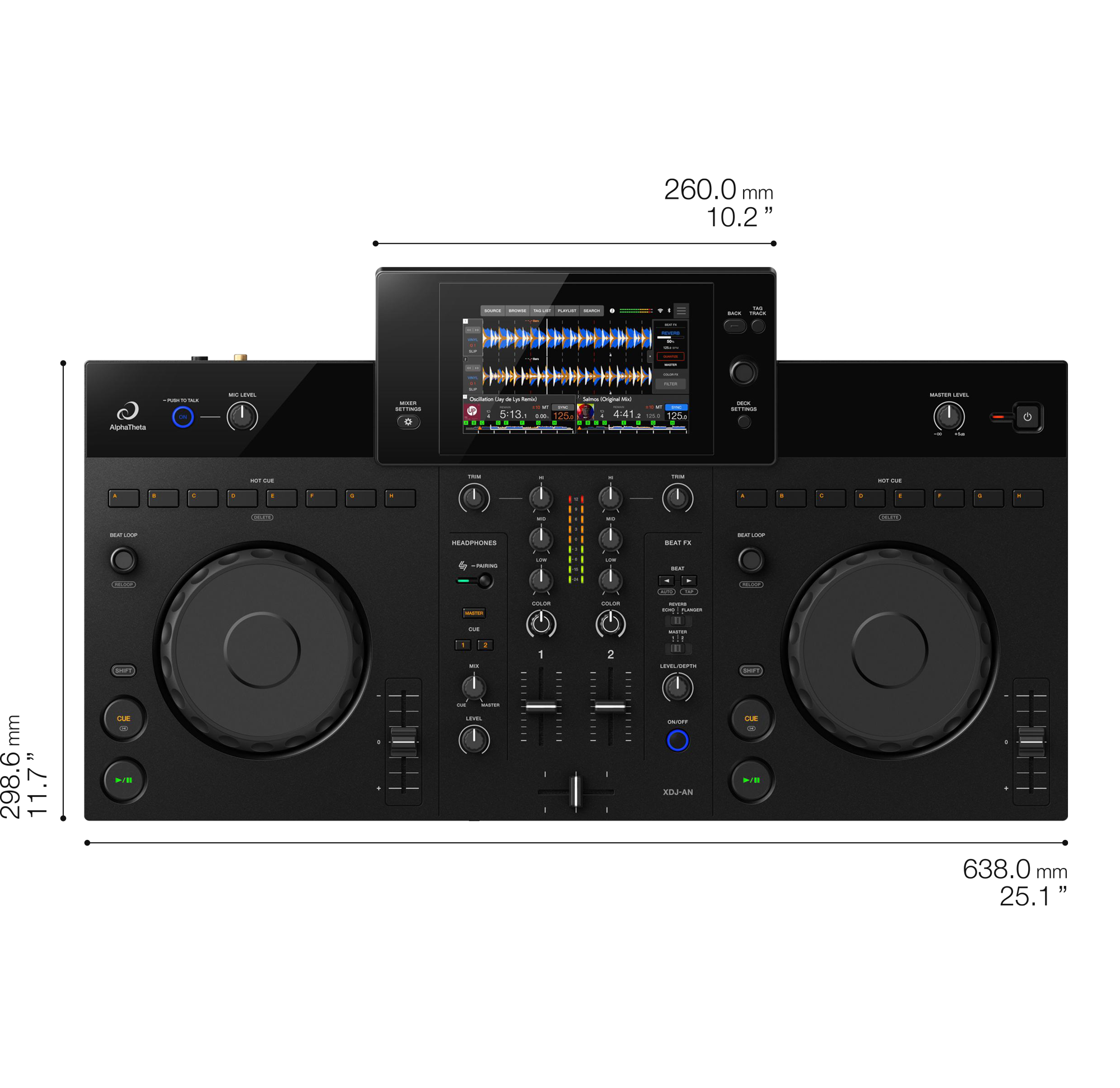

Max. external dimensions (W × D × H)
Max. external dimensions (W × D × H)
638 × 359.2 × 89.9 mm (25.1” × 14.1” × 3.5”)
Main unit weight
Main unit weight
5.2 kg (11.5 lb)
Frequency characteristic
Frequency characteristic
20 Hz – 20 kHz (USB, MIC)
S/N ratio
S/N ratio
112 dB (USB)
Total harmonic distortion
Total harmonic distortion
0.003 % (USB)
Included accessories
Included accessories
AC adapter
Power cord
Quick Start Guide
Warranty (for some regions)
Precautions for Use
Compatible software
Compatible software
rekordbox for Mac/Windows (Hardware Unlock – no license needed)
rekordbox for iOS (DJing via USB cable connection is only supported on the iOS version – no license needed)
djay Pro for Mac and Windows (subscription needed)
djay for iOS (subscription needed)
Serato DJ Lite (no license needed)
Serato DJ Pro (subscription needed)

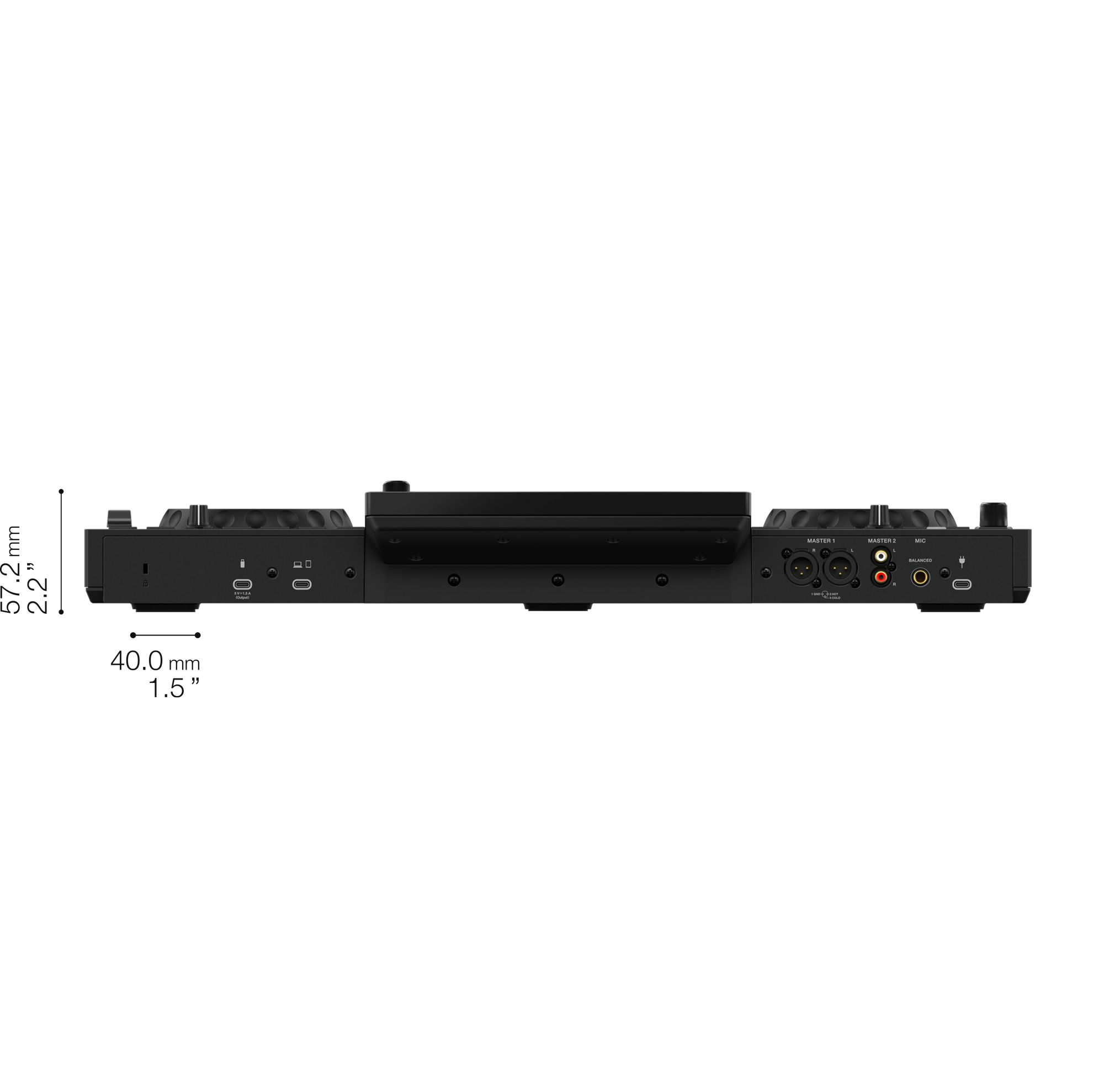

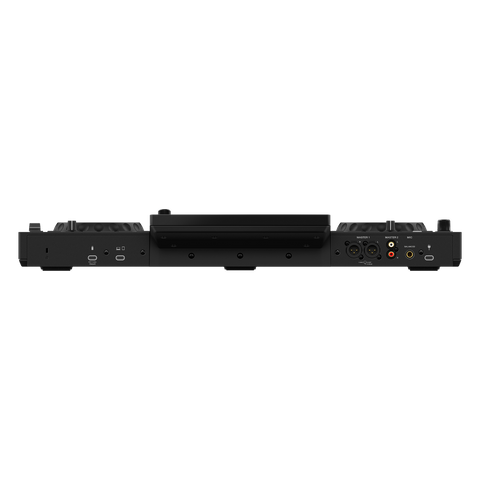

Input / Output Terminals
Input
Input
MIC × 1 (1/4″ TRS jack)
Output
Output
MASTER × 2 (XLR × 1, RCA × 1)
PHONES × 1 (3.5 mm stereo mini jack)

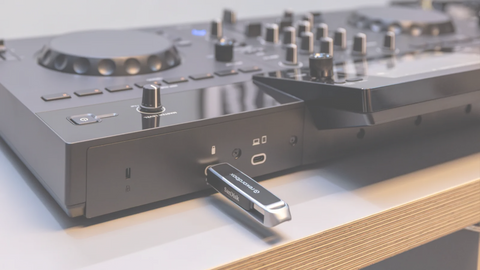

USB
USB
USB Type-C × 1 (Storage)
USB Type-C × 1 (PC/Mac/Mobile device)
USB Type-C × 1 (Power supply)
Wireless LAN (Wi-Fi)
Supported standards
Supported standards
IEEE 802.11 a/b/g/n/ac
Frequency band used
Frequency band used
2.4 GHz / 5 GHz
Bluetooth
Wireless system
Wireless system
Bluetooth Classic
Compatible codecs
Compatible codecs
SBC, AAC
Maximum transmission distance
Maximum transmission distance
Approx. 20 m in unobstructed locations
Frequency band used
Frequency band used
2.4 GHz
SonicLink
Maximum transmission distance
Maximum transmission distance
Approx. 5 m in unobstructed locations
Frequency band used
Frequency band used
2.4 GHz
Performance Control
Channels
Channels
2
Deck control
Deck control
2

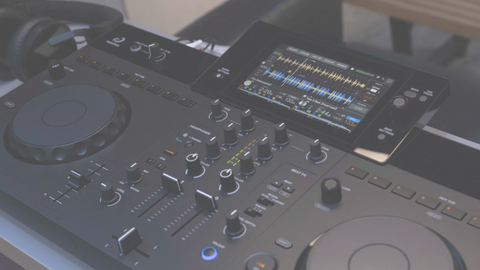

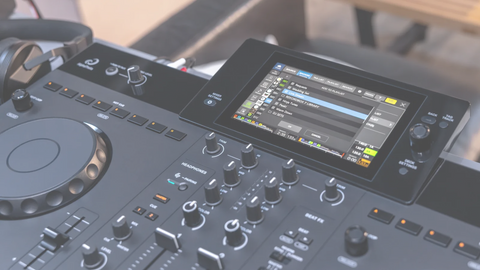

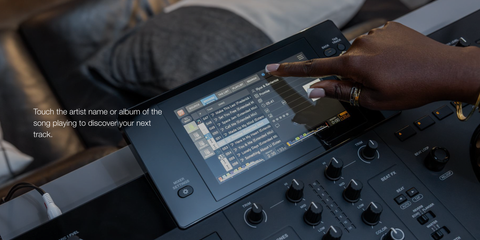

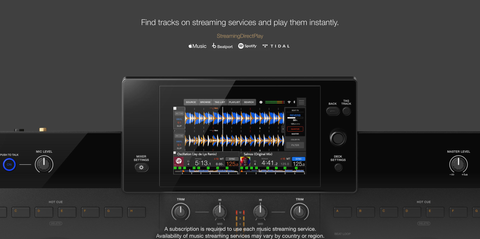

Main display
Main display
7-inch touchscreen (WSVGA 1024 × 600)
Jog wheel size
Jog wheel size
132 mm
Sound Color FX
Sound Color FX
・SPACE
・DUB ECHO
・SWEEP
・NOISE
・CRUSH
・FILTER
Beat FX
Beat FX
・REVERB
・ECHO
・FLANGER
